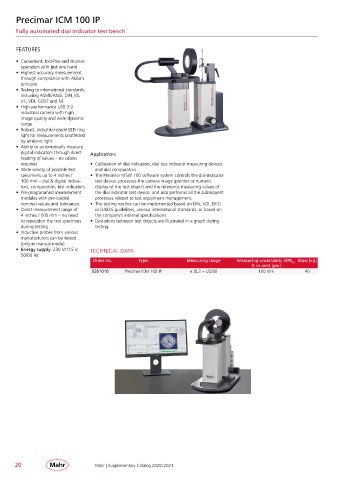

Precimar ICM 100 IP

Fully automated dial indicator test bench

FEATURES

• Convenient, tool-free and intuitive
operation with just one hand
• Highest-accuracy measurement
through compliance with Abbe‘s
principle
• Testing to international standards,
including ASME/ANSI, DIN, BS,
JIS, VDI, GOST and NF.
• High-performance USB 3.0
industrial camera with high
image quality and wide dynamic
range
• Robust, industrial-grade LED ring
light for measurements unaffected
by ambient light
• Ability to automatically measure
digital indicators through direct Application:
reading of values – no cables
required • Calibration of dial indicators, dial test indicator measuring devices
• Wide variety of possible test and dial comparators
specimens up to 4 Inches / • The Precimar MSW 100 software system controls the dial indicator
100 mm – dial & digital indica- test device, processes the camera image (pointer or numeric
tors, comparators, test indicators display of the test object) and the reference measuring values of
• Pre-programmed measurement the dial indicator test device, and also performs all the subsequent
modules with pre-loaded processes related to test equipment management.
nominal values and tolerances • The testing routine can be implemented based on DIN, VDI, DKD
• Direct measurement range of or DAkkS guidelines, various international standards, or based on
4 inches / 100 mm – no need the company’s internal specifications.
to reposition the test specimen • Deviations between test objects are illustrated in a graph during
during testing testing.
• Inductive probes from various
manufacturers can be tested
(only in manual mode)
• Energy supply: 230 V/115 V; TECHNICAL DATA
50/60 Hz
Order no. Type Measuring range Measuring uncertainty MPE Mass [kg]
E1
(L in mm) [µm]
5351010 Precimar ICM 100 IP ≤ (0,2 + L/250) 100 mm 45

20 Mahr | Supplementary Catalog 2020 / 2021
