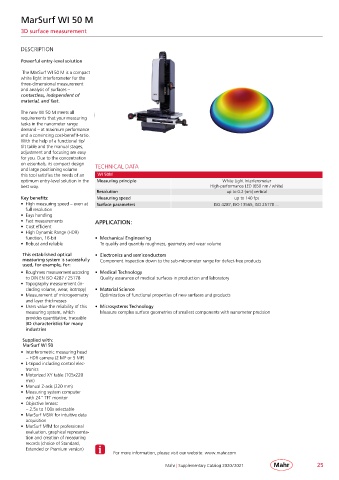

MarSurf WI 50 M

3D surface measurement

DESCRIPTION

Powerful entry-level solution
The MarSurf WI 50 M is a compact
white light interferometer for the
three-dimensional measurement
and analysis of surfaces –
contactless, independent of
material, and fast.
The new WI 50 M meets all
requirements that your measuring
tasks in the nanometer range
demand – at maximum performance
and a convincing cost-benefit-ratio.
With the help of a functional tip/
tilt table and the manual stages,
adjustment and focusing are easy
for you. Due to the concentration
on essentials, its compact design TECHNICAL DATA
and large positioning volume
this tool satisfies the needs of an WI 50M
optimum entry-level solution in the Measuring principle White Light Interferometer
best way. High-performance LED (650 nm / white)
Resolution up to 0.2 (nm) vertical
Key benefits: Measuring speed up to 140 fps
• High measuring speed – even at Surface parameters ISO 4287, ISO 13565, ISO 25178 …
full resolution
• Eays handling
• Fast measurements APPLICATION:
• Cost efficient
• High Dynamic Range (HDR)
function, 16-bit • Mechanical Engineering
• Robust and reliable To qualify and quantify roughness, geometry and wear volume
This established optical • Electronics and semiconductors
measuring system is successfully Component inspection down to the sub-micrometer range for defect-free products
used, for example, for:
• Roughness measurement according • Medical Technology
to DIN EN ISO 4287 / 25178 Quality assurance of medical surfaces in production and laboratory
• Topography measurement (in-
cluding volume, wear, isotropy) • Material Science
• Measurement of microgeometry Optimization of functional properties of new surfaces and products
and layer thicknesses
• Users value the reliability of this • Microsystems Technology
measuring system, which Measure complex surface geometries of smallest components with nanometer precision
provides quantitative, traceable
3D characteristics for many
industries
Supplied with:
MarSurf WI 50
• Interferometric measuring head
– HDR camera (2 MP or 5 MP)
• L-tripod including control elec-
tronics
• Motorized XY table (105x220
mm)
• Manual Z-axis (220 mm)
• Measuring system computer
with 24” TFT monitor
• Objective lenses:
– 2.5x to 100x selectable
• MarSurf MSW for intuitive data
acquisition
• MarSurf MfM for professional
evaluation, graphical representa-
tion and creation of measuring
records (choice of Standard,
Extended or Premium version)
For more information, please visit our website: www.mahr.com

Mahr | Supplementary Catalog 2020 / 2021 25
