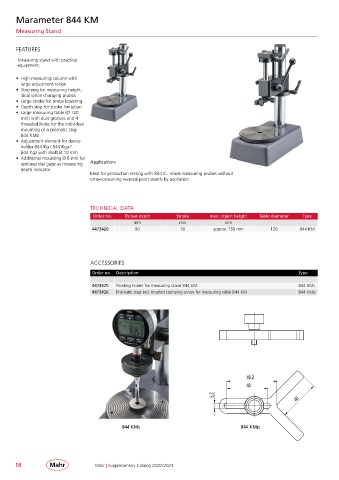

Marameter 844 KM

Measuring Stand

FEATURES

Measuring stand with practical
equipment:

• High measuring column with
large adjustment range
• Stop ring for measuring height,
ideal when changing probes
• Large stroke for probe lowering
• Depth stop for stroke limitation
• Large measuring table (Ø 120
mm) with dust grooves and 4
threaded holes for the individual
mounting of a prismatic stop
844 KMp
• Adjustment element for device
holder 844 Kg / 844 Kga /
844 Kgz with shaft Ø 10 mm
• Additional mounting Ø 8 mm for
optional dial gage as measuring Application:
depth indicator.
Ideal for production testing with 844 K.. inside measuring probes without
time-consuming reversal point search by oscillation

TECHNICAL DATA
Order no. Throat depth Stroke max. object height Table diameter Type
mm mm mm
4473420 90 50 approx. 150 mm 120 844 KM

ACCESSORIES
Order no. Description Type

4473425 Floating holder for measuring stand 844 KM 844 KMs
4473426 Prismatic stop incl. knurled clamping screw for measuring table 844 KM 844 KMp

49,2
40
5,2
40

844 KMs 844 KMp

18 Mahr | Supplementary Catalog 2020 / 2021
