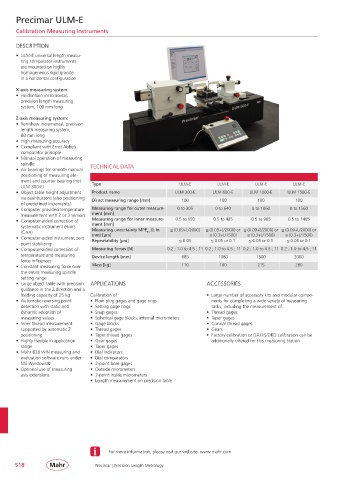

Precimar ULM-E

Calibration Measuring Instruments

DESCRIPTION

• ULM-E universal length measu-
ring comparator instruments
are mounted on highly
homogeneous rigid granite
in a horizontal configuration
X-axis measuring system:
• Heidenhain incremental,
precision length measuring
system, 100 mm long
Z-axis measuring system:
• Renishaw incremental, precision
length measuring system,
80 mm long
• High measuring accuracy
• Compliant with Ernst Abbe’s
comparator principle
• Manual operation of measuring
spindle TECHNICAL DATA
• Air bearings for smooth manual
positioning of measuring ele-
ment and counter bearing (not Type ULM-E ULM-E ULM-E ULM-E
ULM 300-E)
• Object table height adjustment Product name ULM 300-E ULM 600-E ULM 1000-E ULM 1500-E
via pushbuttons (also positioning Direct measuring range [mm] 100 100 100 100
of predefined increments)
• Computer provided temperature Measuring range for outer measure- 0 to 305 0 to 640 0 to 1060 0 to 1560
measurement with 2 or 3 sensors ment [mm]
• Computer-aided correction of Measuring range for inner measure- 0.5 to 150 0.5 to 485 0.5 to 905 0.5 to 1405
systematic instrument errors ment [mm]
(CAA) Measuring uncertainty MPE (L in ≤ (0.09+L/2000) ≤ (0.09+L/2000) or ≤ (0.09+L/2000) or ≤ (0.09+L/2000) or
E1
• Computer-aided instrument zero mm) [µm] ≤ 0.05 ≤ (0.3+L/1500) ≤ (0.3+L/1500) ≤ (0.3+L/1500)
Repeatability [µm]
≤ 0.05 or 0.1
≤ 0.05 or 0.1
≤ 0.05 or 0.1
point stabilizing
• Computer-aided correction of Measuring forces [N] 0.2 ; 1.0 to 4.5 ; 11 0.2 ; 1.0 to 4.5 ; 11 0.2 ; 1.0 to 4.5 ; 11 0.2 ; 1.0 to 4.5 ; 11
temperature and measuring Device length [mm] 685 1080 1500 2000
force influences
• Constant measuring force over Mass [kg] 110 160 215 280
the entire measuring spindle
setting range
• Large object table with precision APPLICATIONS ACCESSORIES
guidance in the Z direction and a
loading capacity of 25 kg Calibration of: • Large number of accessory kits and modular compo-
• Automatic reversing point • Plain plug gages and gage rings nents for completing a wide variety of measuring
detection with static and • Setting gage rings tasks, including the measurement of:
dynamic adoption of • Snap gages • Thread gages
measuring values • Spherical gage blocks, internal micrometers • Taper gages
• Inner thread measurement • Gage blocks • Conical thread gages
supported by automatic Z • Thread gages • Gears
positioning • Taper thread gages • Factory calibration or DAkkS/DKD calibration can be
• Highly flexible in application • Gear gages additionally offered for this measuring station
range • Taper gages
• Mahr 828 WIN measuring and • Dial indicators
evaluation software runs under • Dial comparators
MS Windows® • 2-point bore gages
• Optional use of measuring • Outside micrometers
axis extensions • 2-point inside micrometers
• Length measurement on precision table

For more information, please visit our website: www.mahr.com
