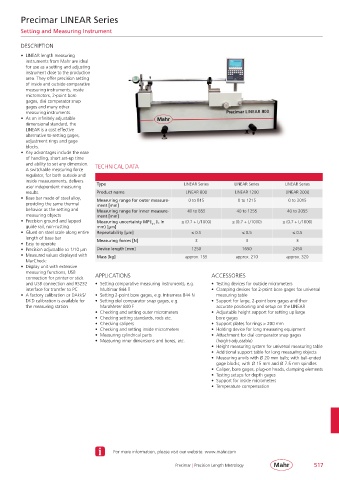

Precimar LINEAR Series

Setting and Measuring Instrument

DESCRIPTION

• LINEAR length measuring
instruments from Mahr are ideal
for use as a setting and adjusting
instrument close to the production
area. They offer precision setting
of inside and outside comparative
measuring instruments, inside
micrometers, 2-point bore
gages, dial comparator snap
gages and many other
measuring instruments.
• As an infinitely adjustable
dimensional standard, the
LINEAR is a cost effective
alternative to setting gages,
adjustment rings and gage
blocks.
• Key advantages include the ease
of handling, short set-up time
and ability to set any dimension. TECHNICAL DATA
A switchable measuring force
regulator, for both outside and
inside measurements, delivers Type LINEAR Series LINEAR Series LINEAR Series
user independent measuring
results. Product name LINEAR 800 LINEAR 1200 LINEAR 2000
• Base bar made of steel alloy, Measuring range for outer measure- 0 to 815 0 to 1215 0 to 2015
providing the same thermal ment [mm]
behavior as the setting and Measuring range for inner measure- 40 to 855 40 to 1255 40 to 2055
measuring objects ment [mm]
• Precision ground and lapped Measuring uncertainty MPE (L in ≤ (0.7 + L/1000) ≤ (0.7 + L/1000) ≤ (0.7 + L/1000)
E1
guide rail, non-rusting mm) [µm]
• Glued on steel scale along entire Repeatability [µm] ≤ 0.5 ≤ 0.5 ≤ 0.5
length of base bar Measuring forces [N] 3 3 3
• Easy to operate
• Precision adjustable to 1/10 µm Device length [mm] 1250 1650 2450
• Measured values displayed with Mass [kg] approx. 155 approx. 210 approx. 320
MarCheck:
• Display unit with extensive
measuring functions, USB APPLICATIONS ACCESSORIES
connection for printer or stick
and USB connection and RS232 • Setting comparative measuring instruments, e.g. • Testing devices for outside micrometers
interface for transfer to PC Multimar 844 T • Clamping devices for 2-point bore gages for universal
• A factory calibration or DAkkS/ • Setting 2-point bore gages, e.g. Intramess 844 N measuring table
DKD calibration is available for • Setting dial comparator snap gages, e.g. • Support for large, 2-point bore gages and their
the measuring station MaraMeter 840 F accurate positioning and setup on the LINEAR
• Checking and setting outer micrometers • Adjustable height support for setting up large
• Checking setting standards, rods etc. bore gages
• Checking calipers • Support plates for rings > 200 mm
• Checking and setting inside micrometers • Holding device for long measuring equipment
• Measuring cylindrical parts • Attachment for dial comparator snap gages
• Measuring inner dimensions and bores, etc. (height-adjustable)
• Height measuring system for universal measuring table
• Additional support table for long measuring objects
• Measuring anvils with Ø 20 mm balls; with ball-ended
gage blocks; with Ø 15 mm and Ø 7.5 mm spindles
• Caliper, bore gages, plug-on heads, clamping elements
• Testing setups for depth gages
• Support for inside micrometers
• Temperature compensation

For more information, please visit our website: www.mahr.com

Precimar | Precision Length Metrology 517
