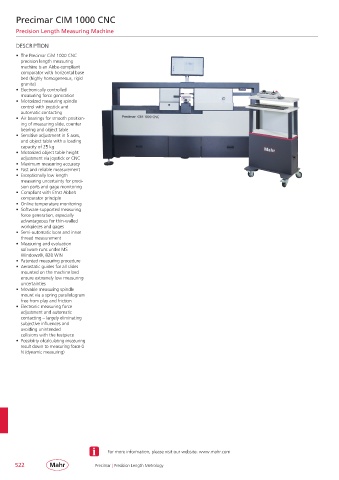

Precimar CIM 1000 CNC

Precision Length Measuring Machine

DESCRIPTION

• The Precimar CiM 1000 CNC
precision length measuring
machine is an Abbe-compliant
comparator with horizontal base
bed (highly homogeneous, rigid
granite)
• Electronically controlled
measuring force generation
• Motorized measuring spindle
control with joystick and
automatic contacting
• Air bearings for smooth position-
ing of measuring slide, counter
bearing and object table
• Sensitive adjustment in 5 axes,
and object table with a loading
capacity of 25 kg
• Motorized object table height
adjustment via joystick or CNC
• Maximum measuring accuracy
• Fast and reliable measurement
• Exceptionally low length
measuring uncertainty for preci-
sion parts and gage monitoring
• Compliant with Ernst Abbe’s
comparator principle
• Online temperature monitoring
• Software-supported measuring
force generation, especially
advantageous for thin-walled
workpieces and gages
• Semi-automatic bore and inner
thread measurement
• Measuring and evaluation
software runs under MS
Windows®, 828 WIN
• Patented measuring procedure
• Aerostatic guides for all slides
mounted on the machine bed
ensure extremely low measuring
uncertainties
• Movable measuring spindle
mount via a spring parallelogram
free from play and friction
• Electronic measuring force
adjustment and automatic
contacting – largely eliminating
subjective influences and
avoiding unintended
collisions with the testpiece
• Possibility ofcalculating measuring
result down to measuring force 0
N (dynamic measuring)
