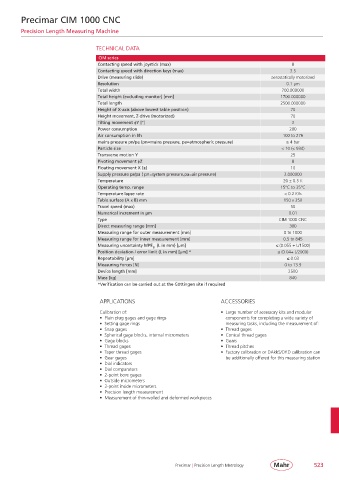

Precimar CIM 1000 CNC

Precision Length Measuring Machine

TECHNICAL DATA
CiM series
Contacting speed with joystick (max) 8
Contacting speed with direction keys (max) 3.5
Drive (measuring slide) aerostatically motorized
Resolution 0.1 µm
Total width 700.000000
Total height (excluding monitor) [mm] 1700.000000
Total length 2500.000000
Height of X-axis (above lowest table position) 70
Height movement, Z-drive (motorized) 70
Tilting movement φY [°] 3
Power consumption 200
Air consumption in l/h 100 to 276
mains pressure pn/pa (pn=mains pressure, pa=atmospheric pressure) ≥ 4 bar
Particle size < 10 (< 934)
Transverse motion Y 25
Pivoting movement φZ 8
Floating movement X (±) 10
Supply pressure ps/pa ( pn=system pressure,pa=air pressure) 3.000000
Temperature 20 ± 0.5 K
Operating temp. range 15°C to 35°C
Temperature lapse rate < 0.2 K/h
Table surface (A x B) mm 150 x 350
Travel speed (max) 50
Numerical increment in µm 0.01
Type CIM 1000 CNC
Direct measuring range [mm] 300
Measuring range for outer measurement [mm] 0 to 1000
Measuring range for inner measurement [mm] 0.5 to 845
Measuring uncertainty MPE (L in mm) [µm] ≤ (0.055 + L/1500)
E1
Position deviation / error limit (L in mm) [µm] * ≤ (0.04+ L/2000)
Repeatability [µm] ≤ 0.03
Measuring forces [N] 0 to 13.9
Device length [mm] 2500
Mass [kg] 840
*Verification can be carried out at the Göttingen site if required

APPLICATIONS ACCESSORIES

Calibration of: • Large number of accessory kits and modular
• Plain plug gages and gage rings components for completing a wide variety of
• Setting gage rings measuring tasks, including the measurement of:
• Snap gages • Thread gages
• Spherical gage blocks, internal micrometers • Conical thread gages
• Gage blocks • Gears
• Thread gages • Thread pitches
• Taper thread gages • Factory calibration or DAkkS/DKD calibration can
• Gear gages be additionally offered for this measuring station
• Dial indicators
• Dial comparators
• 2-point bore gages
• Outside micrometers
• 2-point inside micrometers
• Precision length measurement
• Measurement of thin-walled and deformed workpieces

Precimar | Precision Length Metrology 523
