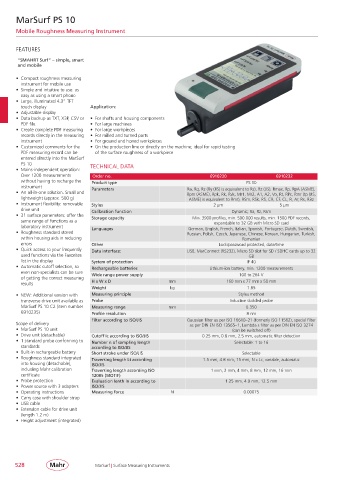

MarSurf PS 10

Mobile Roughness Measuring Instrument

FEATURES

“SMAHRT Surf” – simple, smart
and mobile

• Compact roughness measuring
instrument for mobile use
• Simple and intuitive to use: as
easy as using a smart phone
• Large, illuminated 4.3” TFT
touch display Application:
• Adjustable display
• Data backup as TXT, X3P, CSV or • For shafts and housing components
PDF file • For large machines
• Create complete PDF measuring • For large workpieces
records directly in the measuring • For milled and turned parts
instrument • For ground and honed workpieces
• Customized comments for the • On the production line or directly on the machine; ideal for rapid testing
PDF measuring record can be of the surface roughness of a workpiece
entered directly into the MarSurf
PS 10 TECHNICAL DATA
• Mains-independent operation:
Over 1200 measurements Order no. 6910230 6910232
without having to recharge the Product type PS 10
instrument Parameters Ra, Rq, Rz (Ry (JIS) is equivalent to Rz), Rz (JIS), Rmax, Rp, RpA (ASME),
• An all-in-one solution. Small and Rpm (ASME), Rpk, Rk, Rvk, Mr1, Mr2, A1, A2, Vo, Rt, RPc, Rmr (tp (JIS,
lightweight (approx. 500 g) ASME) is equivalent to Rmr), RSm, RSk, RS, CR, CF, CL, R, Ar, Rx, R3z
• Instrument flexibility: removable Stylus 2 µm 5 µm
drive unit Calibration function Dynamic; Ra, Rz, Rsm
• 31 surface parameters: offer the Storage capacity Min. 3900 profiles, min. 500.000 results, min. 1500 PDF records,
same range of functions as a expandable to 32 GB with Micro SD card
laboratory instrument Languages German, English, French, Italian, Spanish, Portugese, Dutch, Swedish,
• Roughness standard stored Russian, Polish, Czech, Japanese, Chinese, Korean, Hungarian, Turkish,
within housing aids in reducing Romanian
errors Other Lock/password protected, date/time
• Quick access to your frequently Data interface: USB, MarConnect (RS232), Micro SD slot for SD / SDHC cards up to 32
used functions via the Favorites GB
list in the display System of protection IP 40
• Automatic cutoff selection, so Rechargeable batteries Lithium-ion battery, min. 1200 measurements
even non-specialists can be sure Wide range power supply 100 to 264 V
of getting the correct measuring
results H x W x D mm 160 mm x 77 mm x 50 mm
Weight kg 1.85
• NEW: Additional version with Measuring principle Stylus method
transverse drive unit available as Probe Inductive skidded probe
MarSurf PS 10 C2 (item number Measuring range mm 0.350
6910235) Profile resolution 8 nm
Filter according to ISO/JIS Gaussian filter as per ISO 16610– 21 (formerly ISO 11562), special filter
Scope of delivery as per DIN EN ISO 13565– 1, Lambda s filter as per DIN EN ISO 3274
• MarSurf PS 10 unit (can be switched off)
• Drive unit (detachable) Cutoff Ic according to ISO/JIS 0.25 mm, 0.8 mm, 2.5 mm, automatic filter detection
• 1 standard probe conforming to Number n of sampling length Selectable: 1 to 16
standards according to ISO/JIS
• Built-in rechargeable battery Short stroke under ISO/JIS Selectable
• Roughness standard integrated Traversing length Lt according 1.5 mm, 4.8 mm, 15 mm, N x Lc, variable, automatic
into housing (detachable), ISO/JIS
including Mahr calibration Traversing length according ISO 1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm
certificate 12085 (MOTIF)
• Probe protection Evaluation lenth In according to 1.25 mm, 4.0 mm, 12.5 mm
• Power source with 3 adapters ISO/JIS
• Operating instructions Measuring force N 0.00075
• Carry case with shoulder strap
• USB cable
• Extension cable for drive unit
(length 1.2 m)
• Height adjustment (integrated)

528 MarSurf | Surface Measuring Instruments
