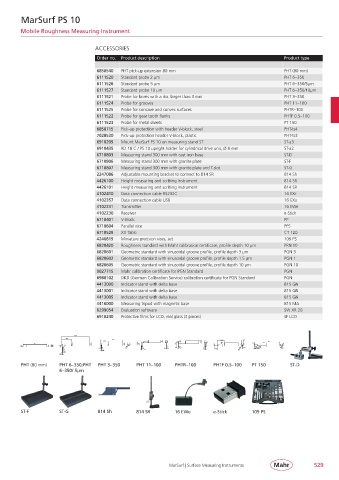

MarSurf PS 10

Mobile Roughness Measuring Instrument

ACCESSORIES
Order no. Product description Product type

6850540 PHT pick-up extension 80 mm PHT (80 mm)
6111520 Standard probe 2 µm PHT 6– 350
6111526 Standard probe 5 µm PHT 6– 350/5µm
6111527 Standard probe 10 µm PHT 6– 350/10µm
6111521 Probe for bores with a dia. larger than 3 mm PHT 3– 350
6111524 Probe for grooves PHT 11– 100
6111525 Probe for concave and convex surfaces PHTR– 100
6111522 Probe for gear tooth flanks PHTF 0.5– 100
6111523 Probe for metal sheets PT 150
6850715 Pick-up protection with header V-block, steel PHT-ts4
7028530 Pick-up protection header V-block, plastic PHT-ts3
6910209 Mount MarSurf PS 10 on measuring stand ST ST-a3
6910435 RD 18 C / PS 10 upright holder for cylindrical drive unit, Ø 8 mm ST-a2
6710803 Measuring stand 300 mm with cast iron base ST-D
6710806 Measuring stand 300 mm with granite plate ST-F
6710807 Measuring stand 300 mm with granite plate and T-slot ST-G
2247086 Adjustable mounting bracket to connect to 814 SR 814 Sh
4426100 Height measuring and scribing instrument 814 SR
4426101 Height measuring and scribing instrument 814 SR
4102410 Data connection cable RS232C 16 EXr
4102357 Data connection cable USB 16 EXu
4102231 Transmitter 16 EWe
4102230 Receiver e-Stick
6710401 V-block PP
6710604 Parallel vice PPS
6710529 XY Table CT 120
4246819 Miniature precision vises, set 109 PS
6820420 Roughness standard with Mahr calibration certificate, profile depth 10 µm PRN 10
6820601 Geometric standard with sinusoidal groove profile, profile depth 3 µm PGN 3
6820602 Geometric standard with sinusoidal groove profile, profile depth 1.5 µm PGN 1
6820605 Geometric standard with sinusoidal groove profile, profile depth 10 µm PGN 10
9027715 Mahr calibration certificate for PGN Standard PGN
6980102 DKD (German Calibration Service) calibration certificate for PGN Standard PGN
4413000 Indicator stand with delta base 815 GN
4413001 Indicator stand with delta base 815 GN
4413005 Indicator stand with delta base 815 GN
4416000 Measuring tripod with magnetic base 815 MA
6299054 Evaluation software SW XR 20
6910240 Protective films for LCD, real glass (3 pieces) SF LCD

PHT (80 mm) PHT 6– 350;PHT PHT 3– 350 PHT 11– 100 PHTR– 100 PHTF 0.5– 100 PT 150 ST-D
6– 350/ 5µm

ST-F ST-G 814 Sh 814 SR 16 EWe e-Stick 109 PS

MarSurf | Surface Measuring Instruments 529
