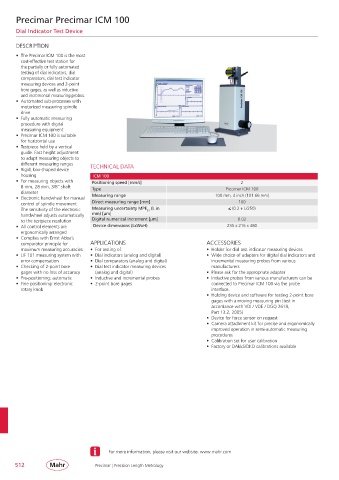

Precimar Precimar ICM 100

Dial Indicator Test Device

DESCRIPTION

• The Precimar ICM 100 is the most
cost-effective test station for
the partially or fully automated
testing of dial indicators, dial
comparators, dial test indicator
measuring devices and 2-point
bore gages, as well as inductive
and incremental measuring probes.
• Automated sub-processes with
motorized measuring spindle
drive
• Fully automatic measuring
procedure with digital
measuring equipment
• Precimar ICM 100 is suitable
for horizontal use
• Testpiece held by a vertical
guide. Fast height adjustment
to adapt measuring objects to
different measuring ranges TECHNICAL DATA
• Rigid, box-shaped device
housing ICM 100
• For measuring objects with Positioning speed [mm/s] 2
8 mm, 28 mm, 3/8’’ shaft Type Precimar ICM 100
diameter
• Electronic handwheel for manual Measuring range 100 mm, 4 inch (101.66 mm)
control of spindle movement. Direct measuring range [mm] 100
The sensitivity of the electronic Measuring uncertainty MPE (L in ≤ (0.2 + L/250)
E1
handwheel adjusts automatically mm) [µm]
to the testpiece resolution Digital numerical increment [µm] 0.02
• All control elements are Device dimensions (LxWxH) 235 x 216 x 480
ergonomically arranged
• Complies with Ernst Abbe’s
comparator principle for APPLICATIONS ACCESSORIES
maximum measuring accuracies • For testing of: • Holder for dial test indicator measuring devices
• LIF 101 measuring system with • Dial indicators (analog and digital) • Wide choice of adapters for digital dial indicators and
error compensation • Dial comparators (analog and digital) incremental measuring probes from various
• Checking of 2-point bore • Dial test indicator measuring devices manufacturers
gages with no loss of accuracy (analog and digital) • Please ask for the appropriate adapter
• Pre-positioning: automatic • Inductive and incremental probes • Inductive probes from various manufacturers can be
• Fine positioning: electronic • 2-point bore gages connected to Precimar ICM 100 via the probe
rotary knob interface.
• Holding device and software for testing 2-point bore
gages with a moving measuring pin (test in
accordance with VDI / VDE / DGQ 2618,
Part 13.2, 2005)
• Device for force sensor on request
• Camera attachment kit for precise and ergonomically
improved operation in semi-automatic measuring
procedures
• Calibration set for user calibration
• Factory or DAkkS/DKD calibrations available

For more information, please visit our website: www.mahr.com
