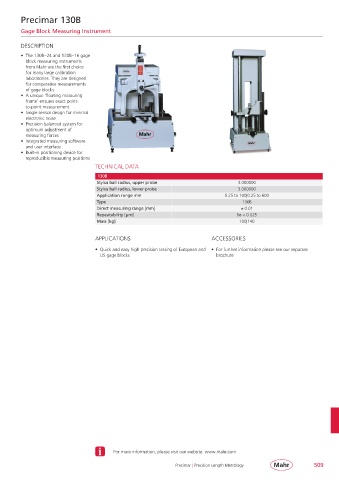

Precimar 130B

Gage Block Measuring Instrument

DESCRIPTION

• The 130B– 24 and 130B– 16 gage
block measuring instruments
from Mahr are the first choice
for many large calibration
laboratories. They are designed
for comparative measurements
of gage blocks.
• A unique ‘floating measuring
frame’ ensures exact point-
to-point measurement
• Single sensor design for minimal
electronic noise
• Precision balanced system for
optimum adjustment of
measuring forces
• Integrated measuring software
and user interface
• Built-in positioning device for
reproducible measuring positions
TECHNICAL DATA
130B
Stylus ball radius, upper probe 3.000000
Stylus ball radius, lower probe 3.000000
Application range mm 0.25 to 100|0.25 to 600
Type 130B
Direct measuring range [mm] ± 0.01
Repeatability [µm] 6ϭ < 0.025
Mass [kg] 100|140

APPLICATIONS ACCESSORIES
• Quick and easy high precision testing of European and • For further information please see our separate
US gage blocks brochure

For more information, please visit our website: www.mahr.com

Precimar | Precision Length Metrology 509
