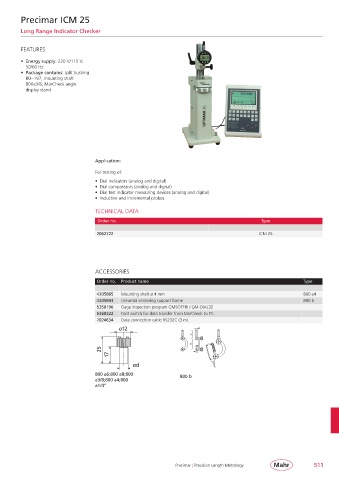

P. 515
Precimar ICM 25
Long Range Indicator Checker
FEATURES
• Energy supply: 230 V/115 V;
50/60 Hz
• Package contains: split bushing
BU– 197, mounting shaft
800a3/8, MarCheck angle
display stand
Application:
For testing of:
• Dial indicators (analog and digital)
• Dial comparators (analog and digital)
• Dial test indicator measuring devices (analog and digital)
• Inductive and incremental probes
TECHNICAL DATA
Order no. Type
2062722 ICM 25
ACCESSORIES
Order no. Product name Type
4305885 Mounting shaft ø 4 mm 800 a4
4305893 Universal centering support frame 800 b
5350196 Gage inspection program QMSOFT® / QM-DIAL32
5360322 Foot switch for data transfer from MarCheck to PC
7024634 Data connection cable RS232C (3 m)
ø12 ø8
44
58
60°
25 ø4
17
ød
800 a6;800 a8;800 800 b
a3/8;800 a4;800
a1/4”
Precimar | Precision Length Metrology 511
