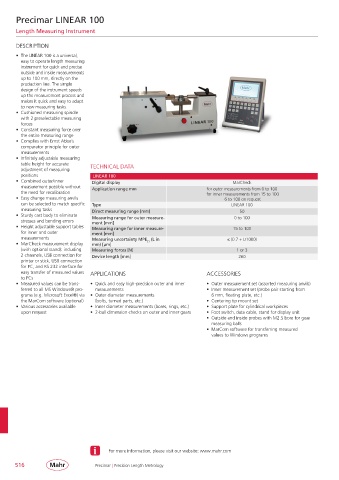

Precimar LINEAR 100

Length Measuring Instrument

DESCRIPTION

• The LINEAR 100 is a universal,
easy to operate length measuring
instrument for quick and precise
outside and inside measurements
up to 100 mm, directly on the
production line. The simple
design of the instrument speeds
up the measurement process and
makes it quick and easy to adapt
to new measuring tasks.
• Cushioned measuring spindle
with 2 preselectable measuring
forces
• Constant measuring force over
the entire measuring range
• Complies with Ernst Abbe’s
comparator principle for outer
measurements
• Infinitely adjustable measuring
table height for accurate TECHNICAL DATA
adjustment of measuring
positions LINEAR 100
• Combined outer/inner Digital display MarCheck
measurement possible without Application range mm for outer measurements from 0 to 100
the need for recalibration for inner measurements from 15 to 100
• Easy change measuring anvils 6 to 100 on request
can be selected to match specific Type LINEAR 100
measuring tasks Direct measuring range [mm] 50
• Sturdy cast body to eliminate Measuring range for outer measure- 0 to 100
stresses and bending errors ment [mm]
• Height adjustable support tables Measuring range for inner measure- 15 to 100
for inner and outer ment [mm]
measurements Measuring uncertainty MPE (L in ≤ (0.7 + L/1000)
• MarCheck measurement display mm) [µm] E1
(with optional stand): including Measuring forces [N] 1 or 3
2 channels, USB connection for Device length [mm] 260
printer or stick, USB connection
for PC, and RS 232 interface for
easy transfer of measured values APPLICATIONS ACCESSORIES
to PCs
• Measured values can be trans- • Quick and easy high-precision outer and inner • Outer measurement set (assorted measuring anvils)
ferred to all MS Windows® pro- measurements • Inner measurement set (probe pair starting from
grams (e.g. Microsoft Excel®) via • Outer diameter measurements 6 mm, floating plate, etc.)
the MarCom software (optional) (bolts, turned parts, etc.) • Centering tip mount set
• Various accessories available • Inner diameter measurements (bores, rings, etc.) • Support plate for cylindrical workpieces
upon request • 2-ball dimension checks on outer and inner gears • Foot switch, data cable, stand for display unit
• Outside and inside probes with M2.5 bore for gear
measuring balls
• MarCom software for transferring measured
values to Windows programs

For more information, please visit our website: www.mahr.com

516 Precimar | Precision Length Metrology
