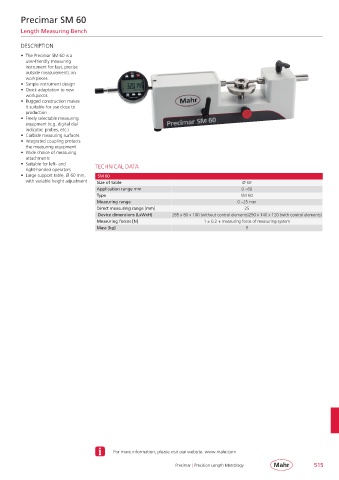

Precimar SM 60

Length Measuring Bench

DESCRIPTION

• The Precimar SM 60 is a
user-friendly measuring
instrument for fast, precise
outside measurements on
workpieces.
• Simple instrument design
• Quick adaptation to new
workpieces
• Rugged construction makes
it suitable for use close to
production
• Freely selectable measuring
equipment (e.g. digital dial
indicator, probes, etc.)
• Carbide measuring surfaces
• Integrated coupling protects
the measuring equipment
• Wide choice of measuring
attachments
• Suitable for left- and TECHNICAL DATA
right-handed operators
• Large support table, Ø 60 mm, SM 60
with variable height adjustment Size of table Ø 60
Application range mm 0 – 60
Type SM 60
Measuring range 0 – 25 mm
Direct measuring range [mm] 25
Device dimensions (LxWxH) 285 x 80 x 100 (without control elements)290 x 140 x 120 (with control elements)
Measuring forces [N] 1 ± 0.2 + measuring force of measuring system
Mass [kg] 9
