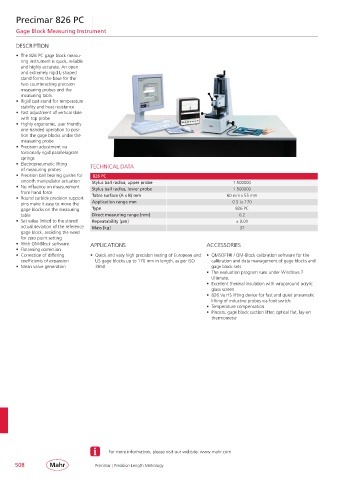

Precimar 826 PC

Gage Block Measuring Instrument

DESCRIPTION

• The 826 PC gage block measu-
ring instrument is quick, reliable
and highly accurate. An open
and extremely rigid L-shaped
stand forms the base for the
two counteracting precision
measuring probes and the
measuring table.
• Rigid cast stand for temperature
stability and heat resistance
• Fast adjustment of vertical slide
with top probe
• Highly ergonomic, user friendly
one-handed operation to posi-
tion the gage blocks under the
measuring probe
• Precision adjustment via
torsionally rigid parallelogram
springs
• Electropneumatic lifting TECHNICAL DATA
of measuring probes
• Precision ball bearing guides for 826 PC
smooth manipulator actuation Stylus ball radius, upper probe 1.500000
• No influence on measurement Stylus ball radius, lower probe 1.500000
from hand force
• Round carbide precision support Table surface (A x B) mm 60 mm x 55 mm
pins make it easy to move the Application range mm 0.5 to 170
gage blocks on the measuring Type 826 PC
table Direct measuring range [mm] 0.2
• Set value linked to the stored Repeatability [µm] ± 0.01
actual deviation of the reference Mass [kg] 37
gage block, avoiding the need
for zero point setting
• With QM-Block software: APPLICATIONS ACCESSORIES
• Flattening correction
• Correction of differing • Quick and easy high precision testing of European and • QMSOFT® / QM-Block calibration software for the
coefficients of expansion US gage blocks up to 170 mm in length, as per ISO calibration and data management of gage blocks and
• Mean value generation 3650 gage block sets
• The evaluation program runs under Windows 7
Ultimate.
• Excellent thermal insulation with wraparound acrylic
glass screen
• 826 Va HS lifting device for fast and quiet pneumatic
lifting of inductive probes via foot switch
• Temperature compensation
• Pincers, gage block suction lifter, optical flat, lay-on
thermometer
