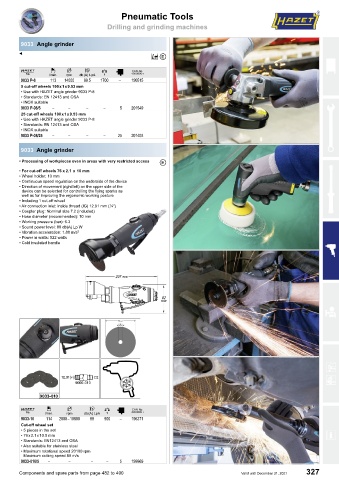

Pneumatic Tools

Drilling and grinding machines

9033 Angle grinder
C
A/
1 l/min. rpm db (A) LpA 5 è 4
^
N
?
9033 P-8 113 14000 89.5 1700 – 190515
5 cut-off wheels 100 x 1 x 9.53 mm
• Use with HAZET angle grinder 9033 P-8
• Standards: EN 12413 and OSA
• INOX suitable
9033 P-08/5 – – – – 5 201549
25 cut-off wheels 100 x 1 x 9.53 mm
• Use with HAZET angle grinder 9033 P-8
• Standards: EN 12413 and OSA
• INOX suitable
9033 P-08/25 – – – – 25 201402

9033 Angle grinder

• Processing of workpieces even in areas with very restricted access /
• For cut-off wheels 76 x 2.1 x 10 mm
• Wheel holder: 10 mm
• Continuous speed regulation on the underside of the device
• Direction of movement (right/left) on the upper side of the
device can be selected for controlling the flying sparks as
well as for improving the ergonomic working posture
• Including 1 cut-off wheel
1
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
• Coupler plug: Nominal size 7.2 (included)
• Hose diameter (recommended): 10 mm
• Working pressure (bar): 6.3
• Sound power level: 88 db(A) Lp W
• Vibration acceleration: 1.80 m/s 2
• Power in watts: 522 watts
• Cold insulated handle

9033-010
1 l/min. rpm db (A) LpA 5 è 4
?
N
^
9033-10 114 2000 – 18000 88 900 – 196371
Cut-off wheel set
• 5 pieces in the set
• 76 x 2.1 x 10.0 mm
• Standards: EN12413 and OSA
• Also suitable for stainless steel
• Maximum rotational speed 20100 rpm
Maximum cutting speed 80 m/s
9033-010/5 – – – – 5 199969

Components and spare parts from page 482 to 490 Valid until December 31, 2021 327
