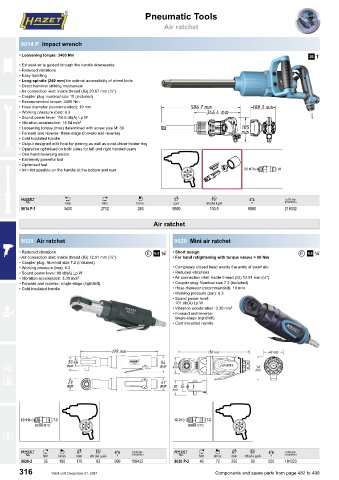

Pneumatic Tools Pneumatic Tools

Air ratchet Air ratchet

9014 P Impact wrench

• Loosening torque: 3400 Nm
5
• Exhaust air is guided through the handle downwards
• Reduced vibrations
• Easy handling
• Long spindle (240 mm) for optimal accessibility of wheel bolts
• Direct hammer striking mechanism
1
• Air connection inlet: inside thread (IG) 20.67 mm ( ⁄2″)
• Coupler plug: nominal size 10 (included)
• Recommended torque: 2400 Nm
• Hose diameter (recommended): 19 mm
• Working pressure (bar): 6.3
• Sound power level: 114.5 db(A) Lp W
• Vibration acceleration: 15.94 m/s 2
• Loosening torque (max) determined with screw size M: 36
• Forward and reverse: three-stage (forward and reverse)
• Cold insulated handle
• Output designed with hole for pinning as well as a nut-driver holder ring
• Operation optimised on both sides for left and right handed users
• One-hand reversing switch
• Extremely powerful tool
• Optimised feel
• Air inlet possible on the handle at the bottom and rear

1 Ú Y l/min. rpm db (A) LpA 5 4
N
?
^
Nm
Nm
9014 P-1 3400 2712 283 5500 103.5 8580 218332
Air ratchet

9020 Air ratchet 9020 Mini air ratchet

• Reduced vibrations / 1 • Short design / 1
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″) • For hand retightening with torque values > 60 Nm
1
• Coupler plug: Nominal size 7.2 (included)
• Working pressure (bar): 6.3 • Completely closed head avoids the entry of swarf etc.
• Sound power level: 89 db(A) Lp W • Reduced vibrations
1
• Vibration acceleration: 3.30 m/s 2 • Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
• Forward and reverse: single-stage (right/left) • Coupler plug: Nominal size 7.2 (included)
• Cold insulated handle • Hose diameter (recommended): 10 mm
• Working pressure (bar): 6.3
• Sound power level:
101 db(A) Lp W
• Vibration acceleration: 3.30 m/s 2
• Forward and reverse:
single-stage (right/left)
• Cold insulated handle

1 Y l/min. rpm db (A) LpA 5 4 1 Y l/min. rpm db (A) LpA 5 4
^
N
^
?
N
?
Nm
Nm
9020-2 35 180 170 83 500 109432 9020 P-2 40 72 250 90 500 184323
316 Valid until December 31, 2021 Components and spare parts from page 482 to 490
