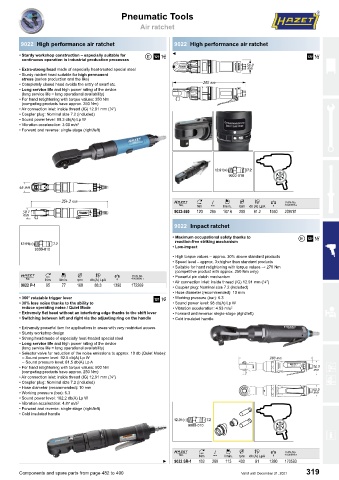

Pneumatic Tools

Air ratchet

9022 High performance air ratchet 9022 High performance air ratchet

• Sturdy workshop construction – especially suitable for / 3 C 3
continuous operation in industrial production processes
• Extra-strong head made of especially heat-treated special steel
• Sturdy ratchet head suitable for high permanent
stress (series production and the like)
• Completely closed head avoids the entry of swarf etc.
• Long service life and high power rating of the device
(long service life = long operational availability)
• For hand retightening with torque values: 350 Nm
(competing products have approx. 250 Nm)
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
1
• Coupler plug: Nominal size 7.2 (included)
• Sound power level: 99.3 db(A) Lp W
• Vibration acceleration: 3.00 m/s 2
• Forward and reverse: single-stage (right/left)

1 Y K l/min. rpm db (A) LpA 5 4
^
?
N
Nm
9022-360 120 285 107.6 200 91.2 1550 209781
9022 Impact ratchet
• Maximum occupational safety thanks to / 3
reaction-free striking mechanism
• Low-impact
• High torque values – approx. 30% above standard products
• Speed level – approx. 3 x higher than standard products
• Suitable for hand retightening with torque values → 270 Nm
(competitive product with approx. 250 Nm only)
1 Y l/min. rpm db (A) LpA 5 4 • Powerful pin clutch mechanism
^
N
?
Nm
1
9022 P-1 95 77 160 88.3 1390 172269 • Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
• Coupler plug: Nominal size 7.2 (included)
• Hose diameter (recommended): 10 mm
• 360° rotatable trigger lever 3 • Working pressure (bar): 6.3
• 30% less noise thanks to the ability to • Sound power level: 98 db(A) Lp W
reduce operating noise / Quiet Mode • Vibration acceleration: 4.53 m/s 2
• Extremely flat head without an interfering edge thanks to the shift lever • Forward and reverse: single-stage (right/left)
• Switching between left and right via the adjusting ring on the handle • Cold insulated handle
• Extremely powerful item for applications in areas with very restricted access
• Sturdy workshop design
• Strong head made of especially heat-treated special steel
• Long service life and high power rating of the device
(long service life = long operational availability)
• Selector valve for reduction of the noise emissions to approx. 10 db (Quiet Mode):
– Sound power level: 92.5 db(A) Lp W
– Sound pressure level: 81.5 db(A) Lp A
• For hand retightening with torque values: 500 Nm
(competing products have approx. 250 Nm)
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
1
• Coupler plug: Nominal size 7.2 (included)
• Hose diameter (recommended): 10 mm
• Working pressure (bar): 6.3
• Sound power level: 102.2 db(A) Lp W
• Vibration acceleration: 4.87 m/s 2
• Forward and reverse: single-stage (right/left)
• Cold insulated handle

1 Y K l/min. rpm db (A) LpA 5 4
?
N
^
Nm
B 9022 SR-1 102 280 113 400 91 1280 170593
Components and spare parts from page 482 to 490 Valid until December 31, 2021 319
