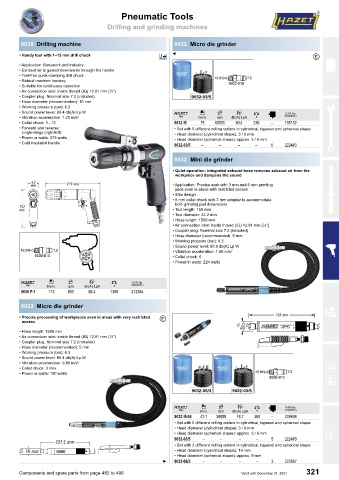

Page 322 - HAZET英文2021

Pneumatic Tools

Drilling and grinding machines

9030 Drilling machine 9032 Micro die grinder

• Handy tool with 1–13 mm drill chuck A C /
• Application: Bodywork and industry
• Exhaust air is guided downwards through the handle
• Tool-free quick-clamping drill chuck
• Robust machine housing
• Suitable for continuous operation
1
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
• Coupler plug: Nominal size 7.2 (included) 9032-03/5
• Hose diameter (recommended): 10 mm
• Working pressure (bar): 6.3
• Sound power level: 99.4 db(A) Lp W 1 ? ^ N 5 è 4
• Vibration acceleration: 1.20 m/s 2 l/min. rpm db (A) LpA
• Collet chuck: 1 – 13 9032 M 75 60000 80.4 230 – 195152
• Forward and reverse: • Set with 5 different milling cutters in cylindrical, tapered and spherical shape
single-stage (right/left) • Head diameter (cylindrical shape): 3 / 6 mm
• Power in watts: 373 watts • Head diameter (spherical shape): approx. 3 / 6 mm
• Cold insulated handle 9032-03/5 – – – – 5 222483

9032 Mini die grinder

• Quiet operation: integrated exhaust hose removes exhaust air from the
workpiece and dampens the sound
• Application: Precise work with 3 mm und 6 mm grinding
pads even in areas with restricted access
• Slim design
• 6 mm collet chuck with 3 mm adapter to accommodate
both grinding pad dimensions
• Tool length: 150 mm
• Tool diameter: 22.2 mm
• Hose length: 1500 mm
1
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
• Coupler plug: Nominal size 7.2 (included)
• Hose diameter (recommended): 5 mm
• Working pressure (bar): 6.3
• Sound power level: 85.8 db(A) Lp W
• Vibration acceleration: 1.80 m/s 2
• Collet chuck: 6
• Power in watts: 224 watts

1 l/min. rpm db (A) LpA 5 4
N
^
?
9030 P-1 113 800 88.4 1300 212354
9032 Micro die grinder

• Precise processing of workpieces even in areas with very restricted /
access
• Hose length: 1500 mm
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
1
• Coupler plug: Nominal size 7.2 (included)
• Hose diameter (recommended): 5 mm
• Working pressure (bar): 6.3
• Sound power level: 86.4 db(A) Lp W
• Vibration acceleration: 0.80 m/s 2
• Collet chuck: 3 mm
• Power in watts: 190 watts

9032-06/3 9032-03/5

1 l/min. rpm db (A) LpA 5 è 4
^
N
?
9032 M-36 43.7 30000 78.7 380 – 209606
• Set with 5 different milling cutters in cylindrical, tapered and spherical shape
• Head diameter (cylindrical shape): 3 / 6 mm
• Head diameter (spherical shape): approx. 3 / 6 mm
9032-03/5 – – – – 5 222483
• Set with 3 different milling cutters in cylindrical, tapered and spherical shape
• Head diameter (cylindrical shape): 10 mm
• Head diameter (spherical shape): approx. 9 mm
B 9032-06/3 – – – – 3 222667
