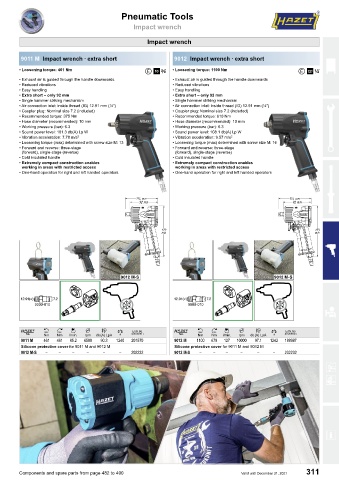

Page 312 - HAZET英文2021

Pneumatic Tools

Impact wrench

Impact wrench

9011 M Impact wrench ∙ extra short 9012 Impact wrench ∙ extra short

• Loosening torque: 461 Nm / 2 • Loosening torque: 1100 Nm / 3
• Exhaust air is guided through the handle downwards • Exhaust air is guided through the handle downwards
• Reduced vibrations • Reduced vibrations
• Easy handling • Easy handling
• Extra short – only 92 mm • Extra short – only 92 mm
• Single hammer striking mechanism • Single hammer striking mechanism
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″) • Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
1
1
• Coupler plug: Nominal size 7.2 (included) • Coupler plug: Nominal size 7.2 (included)
• Recommended torque: 375 Nm • Recommended torque: 610 Nm
• Hose diameter (recommended): 10 mm • Hose diameter (recommended): 10 mm
• Working pressure (bar): 6.3 • Working pressure (bar): 6.3
• Sound power level: 101.3 db(A) Lp W • Sound power level: 108.1 db(A) Lp W
• Vibration acceleration: 7.78 m/s 2 • Vibration acceleration: 9.57 m/s 2
• Loosening torque (max) determined with screw size M: 13 • Loosening torque (max) determined with screw size M: 16
• Forward and reverse: three-stage • Forward and reverse: three-stage
(forward), single-stage (reverse) (forward), single-stage (reverse)
• Cold insulated handle • Cold insulated handle
• Extremely compact construction enables • Extremely compact construction enables
working in areas with restricted access working in areas with restricted access
• One-hand operation for right and left handed operators • One-hand operation for right and left handed operators

9012 M-S 9012 M-S

1 Nm Nm l/min. rpm db (A) LpA 5 4 1 Ú Y l/min. rpm db (A) LpA 5 4
Ú
N
^
?
Y
N
^
?
Nm
Nm
9011 M 461 461 85.2 6500 90.3 1240 201570 9012 M 1100 678 127 10000 97.1 1242 188987
Silicone protective cover for 9011 M and 9012 M Silicone protective cover for 9011 M and 9012 M
9012 M-S – – – – – – 202232 9012 M-S – – – – – – 202232

Components and spare parts from page 482 to 490 Valid until December 31, 2021 311
