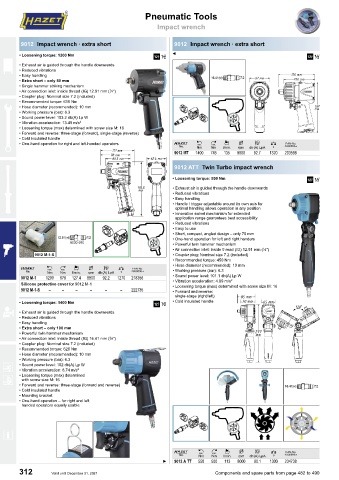

Page 313 - HAZET英文2021

Pneumatic Tools Pneumatic Tools

Impact wrench Impact wrench

9012 Impact wrench ∙ extra short 9012 Impact wrench ∙ extra short

• Loosening torque: 1200 Nm C
3 3
• Exhaust air is guided through the handle downwards
• Reduced vibrations
• Easy handling
• Extra short – only 80 mm
• Single hammer striking mechanism
1
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
• Coupler plug: Nominal size 7.2 (included)
• Recommended torque: 610 Nm
• Hose diameter (recommended): 10 mm
• Working pressure (bar): 6.3
• Sound power level: 103.2 db(A) Lp W
• Vibration acceleration: 13.49 m/s 2
• Loosening torque (max) determined with screw size M: 16
• Forward and reverse: three-stage (forward), single-stage (reverse)
• Cold insulated handle
N
^
• One-hand operation for right and left-handed operators 1 Ú Y l/min. rpm db (A) LpA 5 4
?
Nm
Nm
9012 MT 1400 745 135 9000 92.7 1320 203598
9012 ATT Twin Turbo impact wrench
• Loosening torque: 550 Nm
3
• Exhaust air is guided through the handle downwards
• Reduced vibrations
• Easy handling
• Handle / trigger adjustable around its own axis for
optimal handling allows operation in any position
• Innovative swivel mechanism for extended
application range guarantees best accessibility
• Reduced vibrations
• Easy to use
• Short, compact, angled design – only 70 mm
• One-hand operation for left and right handers
• Powerful twin hammer mechanism
1
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
9012 M-1-S • Coupler plug: Nominal size 7.2 (included)
• Recommended torque: 450 Nm
1 Ú Y l/min. rpm db (A) LpA 5 4 • Hose diameter (recommended): 10 mm
N
^
?
• Working pressure (bar): 6.3
Nm
Nm
9012 M-1 1200 678 127.4 8800 92.2 1270 218356 • Sound power level: 101.1 db(A) Lp W
2
Silicone protective cover for 9012 M-1 • Vibration acceleration: 4.89 m/s
• Loosening torque (max) determined with screw size M: 16
9012 M-1-S – – – – – – 222735 • Forward and reverse:
single-stage (right/left)
• Loosening torque: 1400 Nm 3 • Cold insulated handle
• Exhaust air is guided through the handle downwards
• Reduced vibrations
• Easy handling
• Extra short – only 100 mm
• Powerful twin hammer mechanism
• Air connection inlet: inside thread (IG) 16.41 mm ( ⁄8″)
3
• Coupler plug: Nominal size 7.2 (included)
• Recommended torque: 620 Nm
• Hose diameter (recommended): 10 mm
• Working pressure (bar): 6.3
• Sound power level: 102 db(A) Lp W
• Vibration acceleration: 8.74 m/s 2
• Loosening torque (max) determined
with screw size M: 16
• Forward and reverse: three-stage (forward and reverse)
• Cold insulated handle
• Mounting bracket
• One-hand operation – for right and left
handed operators equally usable

1 Ú Y l/min. rpm db (A) LpA 5 4
^
?
N
Nm
Nm
B 9012 A TT 550 500 113 8000 90.1 1300 234738
312 Valid until December 31, 2021 Components and spare parts from page 482 to 490
