Page 200 - Elpress英文样本电气连接压接系统

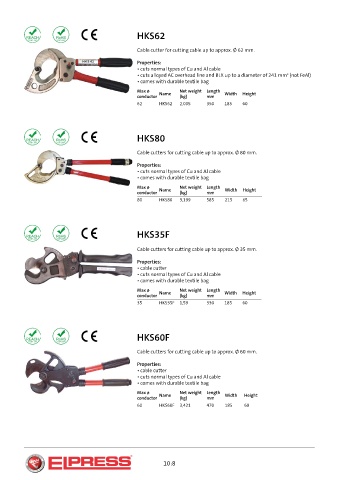

P. 200
HKS62
Cable cutter for cutting cable up to approx. Ø 62 mm.
Properties:
• cuts normal types of Cu and Al cable
• cuts alloyed AC overhead line and BLX up to a diameter of 241 mm² (not FeAl)
• comes with durable textile bag
Max ø Name Net weight Length Width Height
conductor (kg) mm
62 HKS62 2,005 350 185 60
HKS80
Cable cutters for cutting cable up to approx. Ø 80 mm.
Properties:
• cuts normal types of Cu and Al cable
• comes with durable textile bag
Max ø Name Net weight Length Width Height
conductor (kg) mm
80 HKS80 3,199 585 215 65
HKS35F
Cable cutters for cutting cable up to approx. Ø 35 mm.
Properties:
• cable cutter
• cuts normal types of Cu and Al cable
• comes with durable textile bag
Max ø Net weight Length
conductor Name (kg) mm Width Height
35 HKS35F 1,59 330 185 60
HKS60F
Cable cutters for cutting cable up to approx. Ø 60 mm.
Properties:
• cable cutter
• cuts normal types of Cu and Al cable
• comes with durable textile bag
Max ø Name Net weight Length Width Height
conductor (kg) mm
60 HKS60F 3,421 470 185 60
10:8
