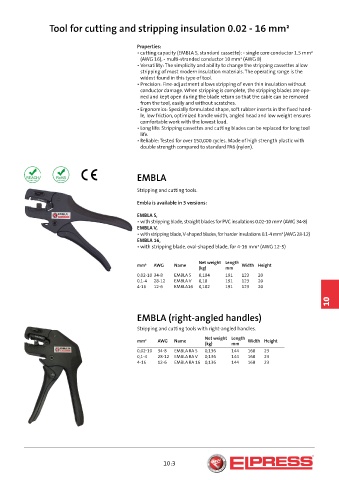

Tool for cutting and stripping insulation 0.02 - 16 mm²

Properties:
• cutting capacity (EMBLA S, standard cassette): - single core conductor 1.5 mm²
(AWG 16), - multi-stranded conductor 10 mm² (AWG 8)
• Versatility: The simplicity and ability to change the stripping cassettes allow
stripping of most modern insulation materials. The operating range is the
widest found in this type of tool.
• Precision: Fine-adjustment allows stripping of even thin insulation without
conductor damage. When stripping is complete, the stripping blades are ope-
ned and kept open during the blade return so that the cable can be removed
from the tool, easily and without scratches.
• Ergonomics: Specially formulated shape, soft rubber inserts in the fixed hand-
le, low friction, optimized handle width, angled head and low weight ensures
comfortable work with the lowest load.
• Long life: Stripping cassettes and cutting blades can be replaced for long tool
life.
• Reliable: Tested for over 150,000 cycles. Made of high strength plastic with
double strength compared to standard PA6 (nylon).

EMBLA

Stripping and cutting tools.

Embla is available in 3 versions:

EMBLA S,
• with stripping blade, straight blades for PVC insulations 0.02-10 mm² (AWG 34-8)
EMBLA V,
• with stripping blade, V-shaped blades, for harder insulations 0.1-4 mm² (AWG 28-12)
EMBLA 16,
• with stripping blade, oval-shaped blade, for 4-16 mm² (AWG 12-5)

Net weight Length
mm² AWG Name Width Height
(kg) mm
0,02-10 34-8 EMBLA S 0,184 191 123 20
0,1-4 28-12 EMBLA V 0,18 191 123 20
4-16 12-6 EMBLA16 0,182 191 123 20

10

EMBLA (right-angled handles)
Stripping and cutting tools with right-angled handles.

Net weight Length
mm² AWG Name Width Height
(kg) mm
0,02-10 34-8 EMBLA RA S 0,136 144 168 23
0,1-4 28-12 EMBLA RA V 0,136 144 168 23
4-16 12-6 EMBLA RA 16 0,136 144 168 23

10:3
