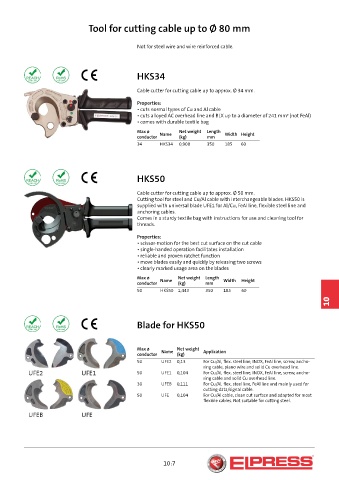

Tool for cutting cable up to Ø 80 mm

Not for steel wire and wire reinforced cable.

HKS34

Cable cutter for cutting cable up to approx. Ø 34 mm.

Properties:
• cuts normal types of Cu and Al cable
• cuts alloyed AC overhead line and BLX up to a diameter of 241 mm² (not FeAl)
• comes with durable textile bag
Max ø Name Net weight Length Width Height
conductor (kg) mm
34 HKS34 0,908 350 185 60

HKS50

Cable cutter for cutting cable up to approx. Ø 50 mm.
Cutting tool for steel and Cu/Al cable with interchangeable blades. HKS50 is
supplied with universal blade UFE1 for Al/Cu, FeAl line, flexible steel line and
anchoring cables.
Comes in a sturdy textile bag with instructions for use and cleaning tool for
threads.
Properties:
• scissor-motion for the best cut surface on the cut cable
• single-handed operation facilitates installation
• reliable and proven ratchet function
• move blades easily and quickly by releasing two screws
• clearly marked usage area on the blades
Max ø Net weight Length
conductor Name (kg) mm Width Height
50 HKS50 1,443 350 185 60
10

Blade for HKS50

Max ø Name Net weight Application
conductor (kg)
50 UFE2 0,13 For Cu/Al, flex. steel line, INOX, FeAl line, screw, ancho-
ring cable, piano wire and solid Cu overhead line.
50 UFE1 0,104 For Cu/Al, flex. steel line, INOX, FeAl line, screw, ancho-
ring cable and solid Cu overhead line.
30 UFEB 0,111 For Cu/Al, flex, steel line, FeAl line and mainly used for
cutting data/signal cable.
50 UFE 0,104 For Cu/Al cable, clean cut surface and adapted for most
flexible cables. Not suitable for cutting steel.

10:7
