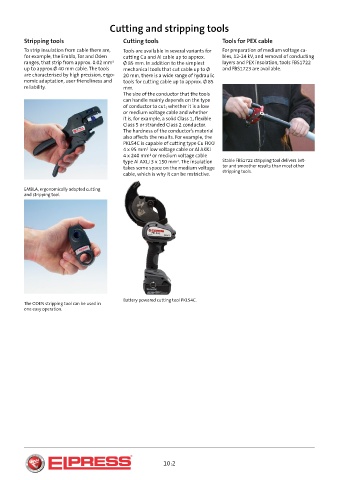

Cutting and stripping tools

Stripping tools Cutting tools Tools for PEX cable
To strip insulation from cable there are, Tools are available in several variants for For preparation of medium voltage ca-
for example, the Embla, Tor and Oden cutting Cu and Al cable up to approx. bles, 12-24 kV, and removal of conducting
ranges, that strip from approx. 0.02 mm² Ø 85 mm. In addition to the simplest layers and PEX insolation, tools FBS1722
up to approx.Ø 40 mm cable. The tools mechanical tools that cut cable up to Ø and FBS1723 are available.
are characterised by high precision, ergo- 20 mm, there is a wide range of hydraulic
nomic adaptation, user friendliness and tools for cutting cable up to approx. Ø 85
reliability. mm.
The size of the conductor that the tools
can handle mainly depends on the type

of conductor to cut; whether it is a low
or medium voltage cable and whether
it is, for example, a solid Class 1, flexible
Class 5 or stranded Class 2 conductor.
The hardness of the conductor’s material
also affects the results. For example, the
PKL54C is capable of cutting type Cu FKKJ
4 x 95 mm² low voltage cable or Al AKKJ
4 x 240 mm² or medium voltage cable
type Al AXLJ 3 x 150 mm². The insulation Stable FBS1722 stripping tool delivers bet-
takes some space on the medium voltage ter and smoother results than most other
cable, which is why it can be restrictive. stripping tools.

EMBLA, ergonomically adapted cutting
and stripping tool.

Battery powered cutting tool PKL54C.
The ODEN stripping tool can be used in
one easy operation.

10:2
