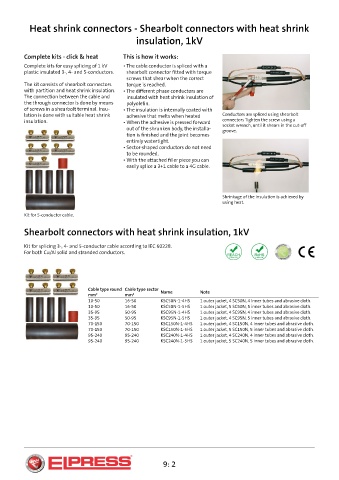

Heat shrink connectors - Shearbolt connectors with heat shrink

insulation, 1kV

Complete kits - click & heat This is how it works:
Complete kits for easy splicing of 1 kV • The cable conductor is spliced with a
plastic insulated 3-, 4- and 5-conductors. shearbolt connector fitted with torque
screws that shear when the correct
The kit consists of shearbolt connectors torque is reached.
with partition and heat shrink insulation. • The different phase conductors are
The connection between the cable and insulated with heat shrink insulation of
the through connector is done by means polyolefin.
of screws in a shearbolt terminal. Insu- • The insulation is internally coated with
lation is done with suitable heat shrink adhesive that melts when heated Conductors are spliced using shearbolt
insulation. • When the adhesive is pressed forward connectors Tighten the screw using a
out of the shrunken body, the installa- socket wrench, until it shears in the cut-off
groove.
tion is finished and the joint becomes

entirely watertight.
• Sector-shaped conductors do not need
to be rounded.
• With the attached filler piece you can
easily splice a 3+1 cable to a 4G cable.

Shrinkage of the insulation is achieved by
using heat.

Kit for 5-conductor cable.

Shearbolt connectors with heat shrink insulation, 1kV

Kit for splicing 3-, 4- and 5-conductor cable according to IEC 60228.
For both Cu/Al solid and stranded conductors.

Cable type round Cable type sector Name Note
mm² mm²
10-50 16-50 KSC50N-1-4HS 1 outer jacket, 4 SC50N, 4 inner tubes and abrasive cloth.
10-50 16-50 KSC50N-1-5HS 1 outer jacket, 5 SC50N, 5 inner tubes and abrasive cloth.
35-95 50-95 KSC95N-1-4HS 1 outer jacket, 4 SC95N, 4 inner tubes and abrasive cloth.
35-95 50-95 KSC95N-1-5HS 1 outer jacket, 4 SC95N, 5 inner tubes and abrasive cloth.
70-150 70-150 KSC150N-1-4HS 1 outer jacket, 4 SC150N, 4 inner tubes and abrasive cloth.
70-150 70-150 KSC150N-1-5HS 1 outer jacket, 5 SC150N, 5 inner tubes and abrasive cloth.
95-240 95-240 KSC240N-1-4HS 1 outer jacket, 4 SC240N, 4 inner tubes and abrasive cloth.
95-240 95-240 KSC240N-1-5HS 1 outer jacket, 5 SC240N, 5 inner tubes and abrasive cloth.
