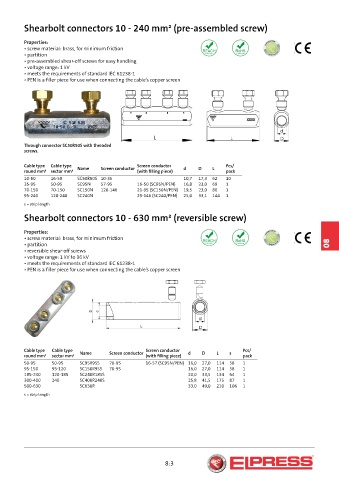

Shearbolt connectors 10 - 240 mm² (pre-assembled screw)

Properties:
• screw material: brass, for minimum friction
• partition
• pre-assembled shear-off screws for easy handling
• voltage range: 1 kV
• meets the requirements of standard IEC 61238-1
• PEN is a filler piece for use when connecting the cable’s copper screen

Through connector SC50R50S with threaded
screws.

Cable type Cable type Name Screen conductor Screen conductor d D L Pcs/
round mm² sector mm² (with filling piece) pack
10-50 16-50 SC50R50S 10-35 10,7 17,3 62 10
35-95 50-95 SC95N 57-95 16-50 (SC95N/PEN) 16,8 23,0 69 1
70-150 70-150 SC150N 120-146 21-95 (SC150N/PEN) 19,5 23,0 80 1
95-240 120-240 SC240N 29-146 (SC240/PEN) 25,0 33,1 144 1
s = strip length

Shearbolt connectors 10 - 630 mm² (reversible screw)

Properties:
• screw material: brass, for minimum friction
• partition 08
• reversible shear-off screws
• voltage range: 1 kV to 36 kV
• meets the requirements of standard IEC 61238-1
• PEN is a filler piece for use when connecting the cable’s copper screen

Cable type Cable type Name Screen conductor Screen conductor d D L s Pcs/
round mm² sector mm² (with filling piece) pack
50-95 50-95 SC95R95S 70-95 16-57 (SC95N/PEN) 16,0 27,0 114 58 1
95-150 95-120 SC150R95S 70-95 16,0 27,0 114 58 1
185-240 120-185 SC240R185S 20,0 33,5 134 64 1
300-400 240 SC400R240S 25,8 41,5 175 87 1
500-630 SC630R 33,0 49,0 210 106 1
s = strip length

8:3
