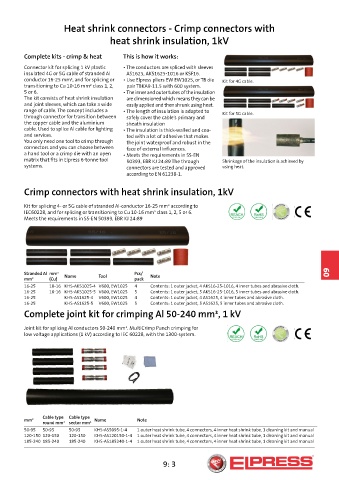

Heat shrink connectors - Crimp connectors with

heat shrink insulation, 1kV

Complete kits - crimp & heat This is how it works:
Connector kit for splicing 1 kV plastic • The conductors are spliced with sleeves

insulated 4G or 5G cable of stranded Al AS1625, AKS1625-1016 or KSF16.
conductor 16-25 mm², and for splicing or • Use Elpress pliers EW EW1025, or TB die Kit for 4G cable.
transitioning to Cu 10-16 mm² class 1, 2, pair TBKA9-11.5 with 600 system.
5 or 6. • The inner and outer tubes of the insulation
The kit consists of heat shrink insulation are dimensioned which means they can be
and joint sleeves, which can take a wide easily applied and then shrunk using heat.
range of cable. The concept includes a • The length of insulation is adapted to
through connector for transition between safely cover the cable’s primary and Kit for 5G cable.
the copper cable and the aluminium sheath insulation
cable. Used to splice Al cable for lighting • The insulation is thick-walled and coa-
and services. ted with a lot of adhesive that makes
You only need one tool to crimp through the joint waterproof and robust in the
connectors and you can choose between face of external influences.
a hand tool or a crimp die with an open • Meets the requirements in SS-EN
matrix that fits in Elpress 6-tonne tool 50393, EBR KJ 24:89 The through Shrinkage of the insulation is achieved by
systems. connectors are tested and approved using heat.
according to EN 61238-1.

Crimp connectors with heat shrink insulation, 1kV
Kit for splicing 4- or 5G cable of stranded Al-conductor 16-25 mm² according to
IEC60228, and for splicing or transitioning to Cu 10-16 mm² class 1, 2, 5 or 6.
Meets the requirements in SS-EN 50393, EBR KJ 24:89

Stranded Al mm² Name Tool Pcs/ Note 09
mm² (Cu) pack
16-25 10-16 KHS-AKS1025-4 V600, EW1025 4 Contents: 1 outer jacket, 4 AKS16-25-1016, 4 inner tubes and abrasive cloth.
16-25 10-16 KHS-AKS1025-5 V600, EW1025 5 Contents: 1 outer jacket, 5 AKS16-25-1016, 5 inner tubes and abrasive cloth.
16-25 KHS-AS1625-4 V600, EW1025 4 Contents: 1 outer jacket, 4 AS1625, 4 inner tubes and abrasive cloth.
16-25 KHS-AS1625-5 V600, EW1025 5 Contents: 1 outer jacket, 5 AS1625, 5 inner tubes and abrasive cloth.

Complete joint kit for crimping Al 50-240 mm², 1 kV
Joint kit for splicing Al conductors 50-240 mm². MultiCrimp Punch crimping for
low voltage applications (1 kV) according to IEC 60228, with the 1300-system.

Cable type Cable type
mm² Name Note
round mm² sector mm²
50-95 50-95 50-95 KHS-AS5095-1-4 1 outer heat shrink tube, 4 connectors, 4 inner heat shrink tube, 1 cleaning kit and manual
120-150 120-150 120-150 KHS-AS120150-1-4 1 outer heat shrink tube, 4 connectors, 4 inner heat shrink tube, 1 cleaning kit and manual
185-240 185-240 185-240 KHS-AS185240-1-4 1 outer heat shrink tube, 4 connectors, 4 inner heat shrink tube, 1 cleaning kit and manual

9: 3
