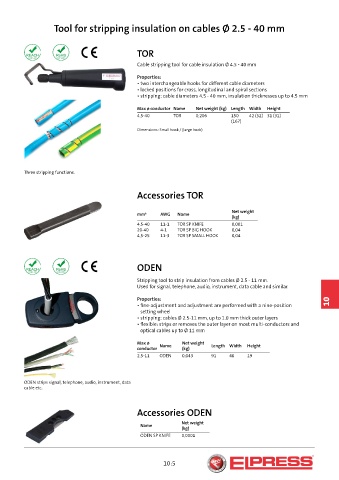

Tool for stripping insulation on cables Ø 2.5 - 40 mm

TOR

Cable stripping tool for cable insulation Ø 4.5 - 40 mm
Properties:
• two interchangeable hooks for different cable diameters
• locked positions for cross, longitudinal and spiral sections
• stripping: cable diameters 4.5 - 40 mm, insulation thicknesses up to 4.5 mm

Max ø conductor Name Net weight (kg) Length Width Height
4,5-40 TOR 0,206 150 42 (52) 31 (31)
(167)
Dimensions: Small hook / (large hook)

Three stripping functions.

Accessories TOR

Net weight
mm² AWG Name
(kg)
4,5-40 11-1 TOR SP KNIFE 0,001
20-40 4-1 TOR SP BIG HOOK 0,04
4,5-25 11-3 TOR SP SMALL HOOK 0,04

ODEN

Stripping tool to strip insulation from cables Ø 2.5 - 11 mm.
Used for signal, telephone, audio, instrument, data cable and similar.

Properties: 10
• fine-adjustment and adjustment are performed with a nine-position
setting wheel
• stripping: cables Ø 2.5-11 mm, up to 1.0 mm thick outer layers
• flexible: strips or removes the outer layer on most multi-conductors and
optical cables up to Ø 11 mm

Max ø Name Net weight Length Width Height
conductor (kg)
2,5-11 ODEN 0,043 91 40 19

ODEN strips signal, telephone, audio, instrument, data
cable etc.

Accessories ODEN
Net weight
Name
(kg)
ODEN SP KNIFE 0,0001

10:5
