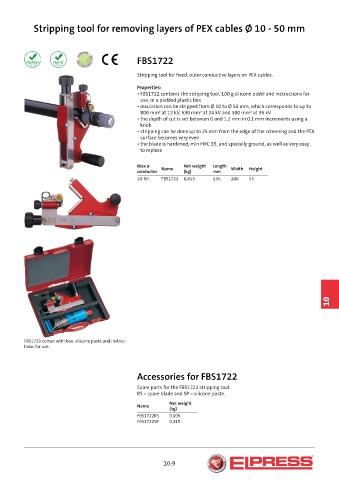

Stripping tool for removing layers of PEX cables Ø 10 - 50 mm

FBS1722

Stripping tool for fixed, outer conductive layers on PEX cables.

Properties:
• FBS1722 contains the stripping tool, 100 g silicone paste and instructions for
use, in a padded plastic box
• insulation can be stripped from Ø 10 to Ø 50 mm, which corresponds to up to
800 mm² at 12 kV, 630 mm² at 24 kV and 500 mm² at 36 kV
• the depth of cut is set between 0 and 1.2 mm in 0.1 mm increments using a
knob
• stripping can be done up to 25 mm from the edge of the screening and the PEX
surface becomes very even
• the blade is hardened, min HRC 55, and specially ground, as well as very easy
to replace

Max ø Net weight Length
conductor Name (kg) mm Width Height
10-50 FBS1722 0,813 235 200 55

10

FBS1722 comes with box, silicone paste and instruc-
tions for use.

Accessories for FBS1722
Spare parts for the FBS1722 stripping tool.

RS = spare blade and SP = silicone paste.
Net weight
Name
(kg)
FBS1722RS 0,006
FBS1722SP 0,115
