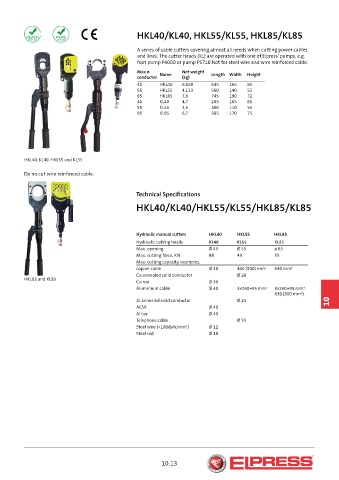

HKL40/KL40, HKL55/KL55, HKL85/KL85

A series of cable cutters covering almost all needs when cutting power cables
and lines. The cutter heads (KL) are operated with one of Elpress’ pumps, e.g.
foot pump P4000 or pump PS710.Not for steel wire and wire reinforced cable.
Max ø Name Net weight Length Width Height
conductor (kg)
40 HKL40 6,058 645 165 85
55 HKL55 4,133 560 140 55
85 HKL85 7,6 745 190 72
40 KL40 4,7 285 105 85
55 KL55 3,5 300 110 55
85 KL85 6,7 385 170 75

HKL40, KL40. HKL55 and KL55

Do no cut wire reinforced cable.

Technical Specifications
HKL40/KL40/HKL55/KL55/HKL85/KL85

Hydraulic manual cutters HKL40 HKL55 HKL85
Hydraulic cutting heads KL40 KL55 KL85
Max. opening Ø 40 Ø 55 ø 85
Max. cutting force, KN 88 43 55
Max. cutting capacity, examples.
copper cable Ø 40 400 (500) mm² 630 mm²
Cu annealed solid conductor Ø 20
HKL85 and KL85
Cu rod Ø 30
Aluminium cable Ø 40 3x240+95 mm² 3x240+95 mm²
630 (800 mm²)
Al annealed solid conductor Ø 25 10
ACSR Ø 40
Al bar Ø 40
Telephone cable Ø 55
Steel wire (<180daN/mm²) Ø 11
Steel rod Ø 18

10:13
