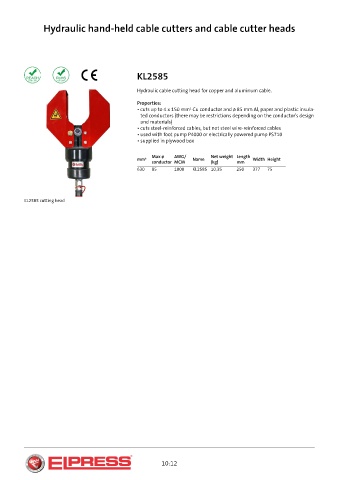

P. 204
Hydraulic hand-held cable cutters and cable cutter heads
KL2585
Hydraulic cable cutting head for copper and aluminum cable.
Properties:
• cuts up to 4 x 150 mm² Cu conductor and ø 85 mm Al, paper and plastic insula-
ted conductors (there may be restrictions depending on the conductor’s design
and materials)
• cuts steel-reinforced cables, but not steel wire-reinforced cables
• used with foot pump P4000 or electrically powered pump PS710
• supplied in plywood box
Max ø AWG/ Net weight Length
mm² Name Width Height
conductor MCM (kg) mm
630 85 1000 KL2585 10,35 250 377 75
KL2585 cutting head
