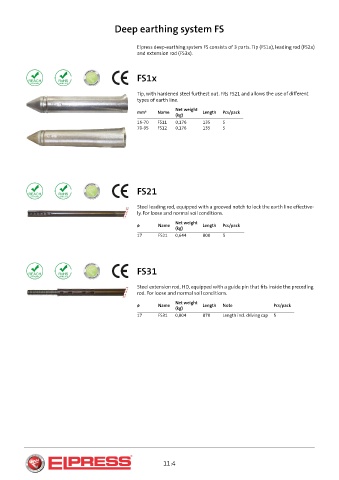

Deep earthing system FS

Elpress deep-earthing system FS consists of 3 parts. Tip (FS1x), leading rod (FS2x)
and extension rod (FS3x).

FS1x

Tip, with hardened steel furthest out. Fits FS21 and allows the use of different
types of earth line.

Net weight
mm² Name Length Pcs/pack
(kg)
16-70 FS11 0,176 135 5
70-95 FS12 0,176 135 5

FS21

Steel leading rod, equipped with a grooved notch to lock the earth line effective-
ly. For loose and normal soil conditions.
Net weight
ø Name Length Pcs/pack
(kg)
17 FS21 0,644 800 5

FS31

Steel extension rod, HD, equipped with a guide pin that fits inside the preceding
rod. For loose and normal soil conditions.
Net weight
ø Name Length Note Pcs/pack
(kg)
17 FS31 0,804 870 Length incl. driving cap 5
