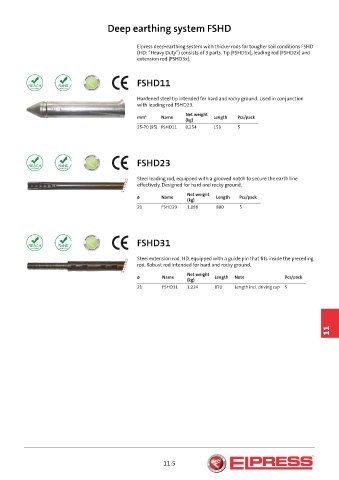

Deep earthing system FSHD

Elpress deep-earthing system with thicker rods for tougher soil conditions FSHD
(HD: ”Heavy Duty”) consists of 3 parts. Tip (FSHD1x), leading rod (FSHD2x) and
extension rod (FSHD3x).

FSHD11

Hardened steel tip intended for hard and rocky ground. Used in conjunction
with leading rod FSHD23.
Net weight
mm² Name Length Pcs/pack
(kg)
25-70 (95) FSHD11 0,254 153 5

FSHD23

Steel leading rod, equipped with a grooved notch to secure the earth line
effectively. Designed for hard and rocky ground.
Net weight
ø Name Length Pcs/pack
(kg)
21 FSHD23 1,088 800 5

FSHD31

Steel extension rod, HD, equipped with a guide pin that fits inside the preceding
rod. Robust rod intended for hard and rocky ground.
Net weight
ø Name (kg) Length Note Pcs/pack

21 FSHD31 1,224 870 Length incl. driving cap 5
