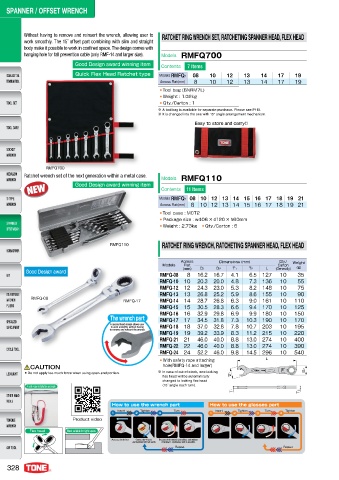

Page 330 - 日本前田TONE

Without having to remove and reinsert the wrench, allowing user to RATCHET RING WRENCH SET, RATCHETING SPANNER HEAD, FLEX HEAD
work smoothly. The 15˚ offset part combining with slim and straight
body make it possible to work in confined space. The design comes with
hanging hole for fall prevention cable (only RMF-14 and larger size). Models RMFQ700
Good Design award winning item Contents 7 Items
Quick Flex Head Ratchet type Models RMFQ- 08 10 12 13 14 17 19
Across Flat(mm) 8 10 12 13 14 17 19
● Tool bag (BNRM7L)
● Weight : 1.02kg
● Qty./Carton : 1
※ A tool bag is available for separate purchase. Please see P115.
※ It is changed into the one with 15° angle arrangement mechanism.
Easy to store and carry!!

RMFQ700
Ratchet wrench set of the next generation within a metal case. Models RMFQ110
Good Design award winning item
Contents 11 Items
Models RMFQ- 08 10 12 13 14 15 16 17 18 19 21
Across Flat(mm) 8 10 12 13 14 15 16 17 18 19 21
● Tool case : MCT2
● Package size : w406 × d120 × h60mm
● Weight : 2.73kg ● Qty./Carton : 6

RMFQ110 RATCHET RING WRENCH, RATCHETING SPANNER HEAD, FLEX HEAD

Across Dimensions (mm) Qty./ Weight
Models Flat Carton (g)
Good Design award (mm) D1 D2 T1 T2 L (Generally)
RMFQ-08 8 16.2 16.7 4.1 6.5 127 10 35
RMFQ-10 10 20.3 20.0 4.8 7.3 136 10 55
RMFQ-12 12 24.3 23.0 5.3 8.2 148 10 75
RMFQ-13 13 26.8 25.2 5.9 8.6 155 10 90
RMFQ-08 RMFQ-17 RMFQ-14 14 28.7 26.8 6.3 9.0 161 10 110
RMFQ-15 15 30.5 28.3 6.6 9.4 170 10 125
RMFQ-16 16 32.9 29.8 6.9 9.9 180 10 150
5IF XSFODI QBSU RMFQ-17 17 34.5 31.8 7.3 10.3 190 10 170
" TQFDJBM IFBE EFTJHO BMMPXT VTFS
" TQFDJBM IFBE EFTJHO BMMPXT VTFS
UP XPSL TNPPUIMZ XJUIPVU IBWJOH RMFQ-18 18 37.0 32.8 7.8 10.7 203 10 195
UP XPSL TNPPUIMZ XJUIPVU IBWJOH
UP SFNPWF BOE SFJOTFSU UIF XSFODI
UP SFNPWF BOE SFJOTFSU UIF XSFODI
RMFQ-19 19 39.2 33.9 8.3 11.2 215 10 220
RMFQ-21 21 46.0 40.0 8.8 13.0 274 10 400
RMFQ-22 22 46.0 40.0 8.8 13.0 274 10 390
RMFQ-24 24 52.2 46.0 9.8 14.5 296 10 540
● With safety rope attaching
CAUTION hole(RMFQ-14 and larger)
● Do not apply too much force when using open-end portion. ※ In case of out-of-stock, non-locking
flex head will be automatically
changed to locking flex head
A safe rope installation example (15˚ angle each turn).
How to use the wrench part How to use the glasses part
Insert Tighten Turn Insert Tighten Turn Tighten
Product video

'MFY IFBE .PTU TVJUBCMF GPS UJHIU TQBDF
Access bolt/nut Contact by 4 faces The part of the wrench part slides, and without
and maintain bolt nut surely. removing it, continuous work is possible.
Repeat Repeat
