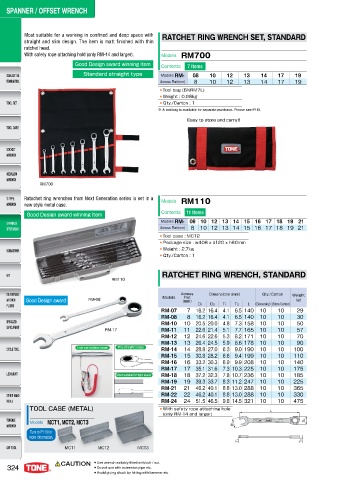

Page 326 - 日本前田TONE

Most suitable for a working in confined and deep space with RATCHET RING WRENCH SET, STANDARD
straight and slim design. The item is matt finished with thin
ratchet head.
With safety rope attaching hold (only RM-14 and larger). Models RM700
Good Design award winning item Contents 7 Items
Standard straight type Models RM- 08 10 12 13 14 17 19
Across Flat(mm) 8 10 12 13 14 17 19
● Tool bag (BNRM7L)
● Weight : 0.96kg
● Qty./Carton : 1
※ A tool bag is available for separate purchase. Please see P115.
Easy to store and carry!!

RM700

Ratachet ring wrenches from Next Generation series is set in a Models RM110
new style metal case.
Good Design award winning item Contents 11 Items
Models RM- 08 10 12 13 14 15 16 17 18 19 21
Across Flat(mm) 8 10 12 13 14 15 16 17 18 19 21
● Tool case : MCT2
● Package size : w406 x d120 x h60mm
● Weight : 2.7kg
● Qty./Carton : 1

RATCHET RING WRENCH, STANDARD
RM110

Across Dimensions (mm) Qty./Carton Weight
Flat
Good Design award RM-08 Models (mm) (g)
D1 D2 T1 T2 L (Generally) (Store Center)
RM-07 7 16.2 16.4 4.1 6.5 140 10 10 29
RM-08 8 16.2 16.4 4.1 6.5 140 10 10 30
RM-10 10 20.5 20.0 4.8 7.3 158 10 10 50
RM-17 RM-11 11 22.6 21.4 5.1 7.7 165 10 10 57
RM-12 12 24.6 22.6 5.3 8.2 171 10 10 70
RM-13 13 26.4 24.5 5.9 8.6 178 10 10 90
RM-14
A safe rope installation example 5IF TUSBJHIU TIBQF .PTU TVJUBCMF GPS UJHIU TQBDF 28.8 27.0 6.3 9.0 190 10 10 100
14
RM-15 15 30.8 28.2 6.6 9.4 199 10 10 110
RM-16 16 33.2 30.3 6.9 9.9 208 10 10 140
RM-17 17 35.1 31.6 7.3 10.3 225 10 10 175
5IF TUSBJHIU TIBQF .PTU TVJUBCMF GPS UJHIU TQBDF RM-18 18 37.2 32.3 7.8 10.7 236 10 10 185
RM-19 19 39.3 33.7 8.3 11.2 247 10 10 225
RM-21 21 46.2 40.1 8.8 13.0 288 10 10 365
RM-22 22 46.2 40.1 8.8 13.0 288 10 10 330
RM-24 24 51.5 46.5 9.8 14.5 321 10 10 475
TOOL CASE (METAL) ● With safety rope attaching hole
(only RM-14 and larger)
Models MCT1, MCT2, MCT3
Turn to P113 for
more information.
MCT1 MCT2 MCT3

CAUTION ● Use wrench suitably fitted with bolt / nut.
324 ● Do not use with extension pipe etc.
● Avoid giving shock by hitting with hammer etc.
