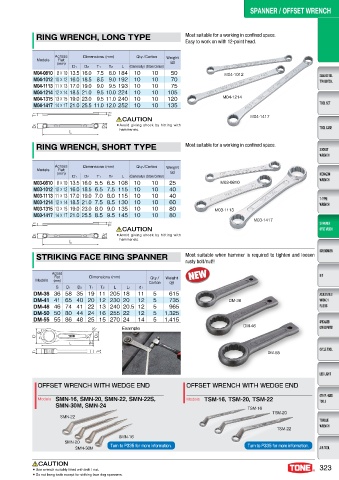

Page 325 - 日本前田TONE

RING WRENCH, LONG TYPE Most suitable for a working in confined space.
Easy to work on with 12-point head.

Across Dimensions (mm) Qty./Carton Weight
Models Flat
(mm) (g)
D1 D2 T1 T2 L (Generally) (Store Center)
M04-0810 8×10 13.5 16.0 7.5 8.0 184 10 10 50 M04-1012
M04-1012 10×12 16.0 18.5 8.5 9.0 192 10 10 70
M04-1113 11×13 17.0 19.0 9.0 9.5 193 10 10 75
M04-1214 12×14 18.5 21.0 9.5 10.0 224 10 10 105
M04-1315 13×15 19.0 23.0 9.5 11.0 240 10 10 120 M04-1214
M04-1417 14×17 21.0 25.5 11.0 12.0 252 10 10 135

M04-1417
CAUTION
● Avoid giving shock by hitting with
hammer etc.

RING WRENCH, SHORT TYPE Most suitable for a working in confined space.

Across Dimensions (mm) Qty./Carton Weight
Models Flat
(mm) (g)
D1 D2 T1 T2 L (Generally) (Store Center)
M03-0810 8×10 13.5 16.0 5.5 6.5 108 10 10 25 M03-0810
M03-1012 10×12 16.0 18.5 6.5 7.5 115 10 10 40
M03-1113 11×13 17.0 19.0 7.0 8.0 115 10 10 40
M03-1214 12×14 18.5 21.0 7.5 8.5 130 10 10 60
M03-1315 13×15 19.0 23.0 8.0 9.0 135 10 10 80 M03-1113
M03-1417 14×17 21.0 25.5 8.5 9.5 145 10 10 80
M03-1417
CAUTION
● Avoid giving shock by hitting with
hammer etc.

STRIKING FACE RING SPANNER Most suitable when hammer is required to tighten and loosen
rusty bolt/nut!!
Across
Flat
Qty./
Models (mm) Dimensions (mm) Carton Weight
(g)
S D1 D2 T1 T2 L L1 d1
DM-36 36 58 35 19 11 205 18 11 5 615
DM-41 41 65 40 20 12 230 20 12 5 735 DM-36
DM-46 46 74 41 22 13 240 20.5 12 5 965
DM-50 50 80 44 24 16 255 22 12 5 1,325
DM-55 55 86 48 25 15 270 24 14 5 1,415
DM-46
E Example
4

% %
- -
5
5 DM-55

OFFSET WRENCH WITH WEDGE END OFFSET WRENCH WITH WEDGE END
Models SMN-16, SMN-20, SMN-22, SMN-22S, Models TSM-16, TSM-20, TSM-22
SMN-30M, SMN-24 TSM-16
TSM-20
SMN-22
TSM-22
SMN-16
SMN-20
SMN-30M Turn to P335 for more information. Turn to P335 for more information.

CAUTION
● Use wrench suitably fitted with bolt / nut. 323
● Do not bang tools except for striking face ring spanners.
