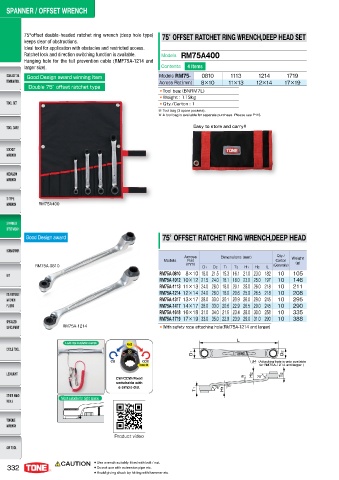

Page 334 - 日本前田TONE

75°offset double-headed ratchet ring wrench (deep hole type) 75° OFFSET RATCHET RING WRENCH,DEEP HEAD SET
keeps clear of obstructions.
Ideal tool for application with obstacles and restricted access.
Ratchet lock and direction switching function is available. Models RM75A400
Hanging hole for the fall prevention cable (RMF75A-1214 and
larger size). Contents 4 Items
Good Design award winning item Models RM75- 0810 1113 1214 1719
Double 75° offset ratchet type Across Flat（mm） 8×10 11×13 12×14 17×19
● Tool bag (BNRM7L)
● Weight : 1.13kg
● Qty./Carton : 1
※ Tool bag (3 spare pockets).
※ A tool bag is available for separate purchase. Please see P115.
Easy to store and carry!!

RM75A400

Good Design award 75° OFFSET RATCHET RING WRENCH,DEEP HEAD

Across Dimensions (mm) Qty./ Weight
Models Flat Carton
RM75A-0810 (mm) D1 D2 T1 T2 H1 H2 L (Generally) (g)

RM75A-0810 8×10 18.0 21.5 15.3 16.1 21.0 23.0 182 10 105

RM75A-1012 10×12 21.5 24.0 16.1 18.0 23.0 25.0 197 10 146
RM75A-1113 11×13 24.0 28.0 18.0 20.1 25.0 26.0 218 10 211
RM75A-1214 12×14 24.0 28.0 18.0 20.6 25.0 26.5 218 10 208
RM75A-1317 13×17 28.0 33.0 20.1 20.9 26.0 29.0 245 10 295
RM75A-1417 14×17 28.0 33.0 20.6 22.9 26.5 29.0 245 10 290
RM75A-1618 16×18 31.0 34.0 21.5 23.4 28.0 30.0 258 10 335
RM75A-1719 17×19 33.0 35.0 22.9 23.9 29.0 31.0 290 10 388
RM75A-1214 ● With safety rope attaching hole(RM75A-1214 and larger)
-
A safe rope installation example Fixed
%̍ %̎
CW
CW CCW П̐ "UUBDIJOH IPMF JT POMZ BWBJMBCMF
CCW
Change dial GPS 3. " BOE MBSHFS
CW/CCW/Fixed ˃ )̎ ̓̑˃ 5̎
switchable with
a simple dial. ̓̑˃ ˃
5̍ )̍
.PTU TVJUBCMF GPS UJHIU TQBDF

Product video

CAUTION ● Use wrench suitably fitted with bolt / nut.
332 ● Do not use with extension pipe etc.
● Avoid giving shock by hitting with hammer etc.
