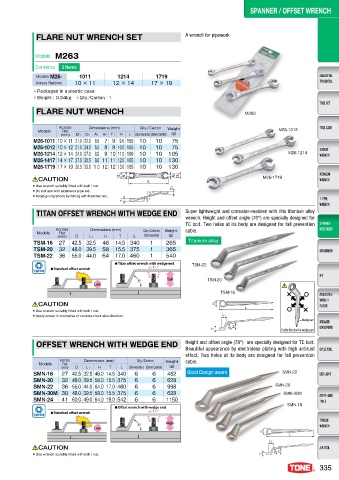

FLARE NUT WRENCH SET A wrench for pipework

Models M263

Contents 3 Items
Models M26- 1011 1214 1719
Across Flat(mm) 10 × 11 12 × 14 17 × 19
● Packaged in a plastic case
● Weight : 0.34kg ● Qty./Carton : 1
FLARE NUT WRENCH M263

Across Dimensions (mm) Qty./Carton Weight
Models Flat M26-1012
(mm) D1 D2 A1 A2 T1 T2 L (Generally) (Store Center) (g)
M26-1011 10 × 11 21.0 22.0 6.5 7 9 9.5 155 10 10 75
M26-1012 10 × 12 21.0 24.0 6.5 8 9 10.0 155 10 10 75
M26-1214 12 × 14 24.0 27.0 8.0 9 10 11.0 160 10 10 105 M26-1214
M26-1417 14 × 17 27.0 30.5 9.0 11 11 12.0 165 10 10 130
M26-1719 17 × 19 30.5 33.0 11.0 12 12 13.0 165 10 10 130
CAUTION M26-1719
● Use wrench suitably fitted with bolt / nut.
● Do not use with extension pipe etc.
● Avoid giving shock by hitting with hammer etc.

TITAN OFFSET WRENCH WITH WEDGE END Super lightweight and corrosion-resisted with this titanium alloy
wrench. Height and offset angle (70°) are specially designed for
TC bolt. Two holes at its body are designed for fall prevention
Across Dimensions (mm) Qty./Carton Weight cable.
Models Flat
(mm) D L1 H T L (Generally) (g)
TSM-16 27 42.5 32.5 46 14.5 340 1 265 Titanium alloy
TSM-20 32 48.0 39.5 58 15.5 375 1 365
TSM-22 36 55.0 44.0 64 17.0 460 1 540
5JUBO P⒎TFU XSFODI XJUI XFEHF FOE TSM-22
Torque-shear 4UBOEBSE P⒎TFU XSFODI
70 5BMM TSM-20
-PX
TSM-16

CAUTION
● Use wrench suitably fitted with bolt / nut.
● Apply power in clockwise or counter-clock sise direction.
8FEHF QBSU
6TBCMF EJSFDUJPO GPS XFEHF QBSU
OFFSET WRENCH WITH WEDGE END Height and offset angle (70°) are specially designed for TC bolt.
Beautiful appearance by electroless plating with high antirust
effect. Two holes at its body are designed for fall prevention
Across Dimensions (mm) Qty./Carton Weight cable.
Models Flat
(mm) D L1 H T L (Generally) (Store Center) (g)
SMN-16 27 42.5 32.5 46.0 14.5 340 6 6 452 Good Design award SMN-22
SMN-20 32 48.0 39.5 58.0 15.5 375 6 6 628
SMN-22 36 55.0 44.0 64.0 17.0 460 6 6 998 SMN-20
SMN-30M 30 48.0 39.5 58.0 15.5 375 6 6 628 SMN-30M
SMN-24 41 60.0 49.0 64.0 19.0 542 6 6 1150
SMN-16
0⒎TFU XSFODI XJUI XFEHF FOE
Torque-shear 4UBOEBSE P⒎TFU XSFODI

70 )JHI
-PX

CAUTION
● Use wrench suitably fitted with bolt / nut.
