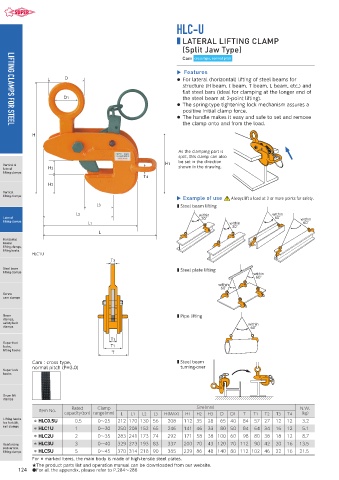

HLC-U

■ LATERAL LIFTING CLAMP
(Split Jaw Type)
Cam cross type, normal pitch

Features
D ● For lateral (horizontal) lifting of steel beams for

structure (H beam, I beam, T beam, L beam, etc.) and
flat steel bars (ideal for clamping at the longer end of
D1 the steel beam at 2-point lifting).
● The spring-type tightening lock mechanism assures a
positive initial clamp force.
● The handle makes it easy and safe to set and remove
the clamp onto and from the load.
LIFTING CLAMPS FOR STEEL
H

As the clamping part is
split, this clamp can also
be set in the direction
Vertical & H1
lateral H3 shown in the drawing.
lifting clamps
T4
H2
Vertical
lifting clamps
Example of use Always lift a load at 2 or more points for safety.
L3 ■ Steel beam lifting
L2 within within
Lateral 30° 60° within
lifting clamps
L1 within 60°
30°
L
Horizontal
lateral
lifting clamps,
lifting hooks
HLC1U
HLC1U
T3
Steel beam ■ Steel plate lifting
lifting clamps
within
60°
within
60°
Screw
cam clamps
Beam ■ Pipe lifting
clamps,
safety belt within
clamps 60°
T2
Super foot
locks, T1
lifting hooks
T
Cam : cross type, ■ Steel beam
normal pitch (P=3.0) turning-over
Super lock
hooks

Drum lift
clamps
Rated Clamp Size （mm） N.W.
Item No.
capacity （ton） range （mm） L L1 L2 L3 H（MAX） H1 H2 H3 D D1 T T1 T2 T3 T4 （kg）
Lifting hooks
for forklift, ＊ HLC0.5U 0.5 0〜25 212 170 130 56 208 112 35 28 65 40 84 57 27 12 12 3.2
rail clamps
＊ HLC1U 1 0〜30 250 208 152 65 246 141 46 33 80 50 84 64 34 16 12 5.1
＊ HLC2U 2 0〜35 283 241 173 74 292 171 58 38 100 60 98 80 38 18 12 8.7
Reinforcing ＊ HLC3U 3 0〜40 329 273 193 83 337 200 70 43 120 70 112 90 42 20 16 13.5
rod vertical
lifting clamps ＊ HLC5U 5 0〜45 370 314 218 90 385 229 86 48 140 80 112 102 46 22 16 21.5
For ＊ marked items, the main body is made of high-tensile steel plates.
★The product parts list and operation manual can be downloaded from our website.
124 ●For all the appendix, please refer to P.284〜286
