GVC-E
D

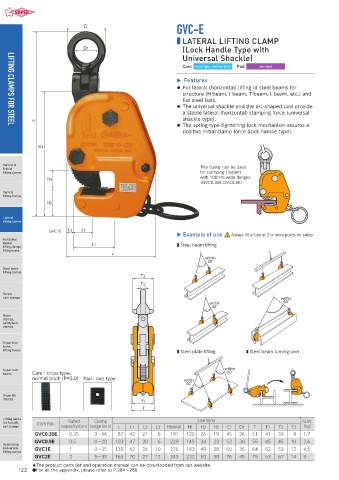

■ LATERAL LIFTING CLAMP
D1 (Lock Handle Type with
Universal Shackle)
Cam cross type, normal pitch Pad line type

Features
● For lateral (horizontal) lifting of steel beams for
structure (H beam, I beam, T beam, L beam, etc.) and
flat steel bars.
● The universal shackle and the arc-shaped pad provide
a stable lateral (horizontal) clamping force (universal
H shackle type).
● The spring-type tightening lock mechanism assures a
LIFTING CLAMPS FOR STEEL
positive initial clamp force (lock handle type).

H1

Vertical &
lateral This clamp can be used
lifting clamps for clamping I beams
with 100mm wide flanges.
H3
（GVC0.35E,GVC0.5E）
Vertical
lifting clamps
H2

Lateral
lifting clamps
GVC1E L3 L2
Example of use Always lift a load at 2 or more points for safety.
Horizontal
lateral
lifting clamps, L1 ■ Steel beam lifting
lifting hooks
L
within
30°
Steel beam
lifting clamps
T2
T3
Screw
cam clamps within
within 60°
30°
Beam
clamps,
safety belt
clamps

Super foot
locks,
lifting hooks
■ Steel plate lifting ■ Steel beam turning-over

Super lock within
hooks Cam : cross type, 60°
normal pitch (P=3.0) Pad : line type within
60°
Drum lift
clamps
T1
T
Lifting hooks Size （mm）
for forklift, Item No. Rated Clamp N.W.
rail clamps capacity （ton） range （mm） L L1 L2 L3 H（MAX） H1 H2 H3 D D1 T T1 T2 T3 （kg）
GVC0.35E 0.35 0〜16 87 42 21 6 191 120 26 19 45 26 51 41 39 8 1.7
GVC0.5E 0.5 0〜20 103 47 20 6 229 145 34 23 52 30 55 45 45 10 2.6
Reinforcing
rod vertical GVC1E 1 0〜25 130 62 26 10 276 183 40 28 60 35 64 52 53 12 4.5
lifting clamps
GVC2E 2 5〜35 163 70 27 12 343 222 50 38 76 45 79 63 67 14 9
★The product parts list and operation manual can be downloaded from our website.
122 ●For all the appendix, please refer to P.284〜286
