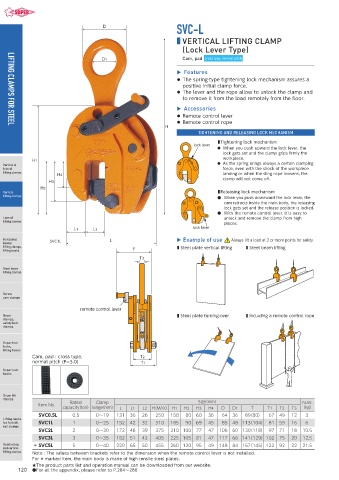

SVC-L
D
■ VERTICAL LIFTING CLAMP
(Lock Lever Type)
Cam, pad cross type, normal pitch
D1
Features

● The spring-type tightening lock mechanism assures a
positive initial clamp force.
● The lever and the rope allow to unlock the clamp and
to remove it from the load remotely from the floor.
Accessories
● Remote control lever

● Remote control rope
H
LIFTING CLAMPS FOR STEEL
TIGHTENING AND RELEASING LOCK MECHANISM
■ Tightening lock mechanism
lock lever
● When you push upward the lock lever, the
lock gets set and the clamp grips firmly the
workpiece.
H1
Vertical & ● As the spring brings always a certain clamping
lateral force, even with the shock of the workpiece
lifting clamps landing or when the sling rope loosens, the
H4
clamp will not come off.
H3
H2
Vertical ■ Releasing lock mechanism
lifting clamps
● When you push downward the lock lever, the
cam retracts inside the main body, the releasing
lock gets set and the release position is locked.
● With the remote control lever, it is easy to
Lateral unlock and remove the clamp from high
lifting clamps
places.
lock lever
L1 L2
Horizontal L Example of use Always lift a load at 2 or more points for safety.
SVC1L
lateral SVC1L
lifting clamps, ■ Steel plate vertical lifting ■ Steel beam lifting
lifting hooks T
T3
Steel beam
lifting clamps
Screw
cam clamps
remote control lever
Beam ■ Steel plate turning-over ■ Including a remote control rope
clamps,
safety belt
clamps

Super foot
locks,
lifting hooks
Cam, pad : cross type, T2
normal pitch (P=3.0) T1
Super lock
hooks

Drum lift
clamps
Rated Clamp Size （mm） N.W.
Item No.
capacity （ton） range （mm） L L1 L2 H（MAX） H1 H2 H3 H4 D D1 T T1 T2 T3 （kg）
SVC0.5L 0.5 0〜19 131 36 26 250 158 80 60 36 64 36 89（80） 67 49 12 3
Lifting hooks
for forklift, SVC1L 1 0〜25 152 42 32 310 185 90 69 45 85 48 113（104） 81 59 16 6
rail clamps
SVC2L 2 0〜30 172 48 39 375 210 100 77 47 106 60 130（118） 97 71 18 10.5
SVC3L 3 0〜35 182 51 42 405 225 105 81 47 117 66 141（129）102 75 20 12.5
Reinforcing ＊ SVC5L 5 0〜40 220 65 50 455 260 120 95 49 148 84 157（145）122 92 22 21.5
rod vertical
lifting clamps
Note : The values between brackets refer to the dimension when the remote control lever is not installed.
For ＊ marked item, the main body is made of high-tensile steel plates.
★The product parts list and operation manual can be downloaded from our website.
