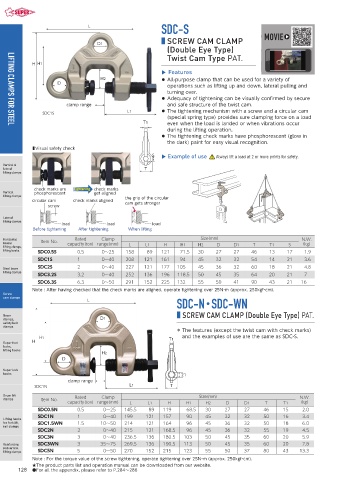

Page 130 - 世霸SuperToolVol.6

SDC-S
L

■ SCREW CAM CLAMP
D1
(Double Eye Type)
Twist Cam Type PAT.
H H1
Features

H2 ● All-purpose clamp that can be used for a variety of

D
operations such as lifting up and down, lateral pulling and
turning over.
● Adequacy of tightening can be visually confirmed by secure
clamp range and safe structure of the twist cam.
L1 ● The tightening mechanism with a screw and a circular cam
SDC1S
(special spring type) provides sure clamping force on a load
T1 even when the load is landed or when vibrations occur
LIFTING CLAMPS FOR STEEL
during the lifting operation.
● The tightening check marks have phosphorescent (glow in
the dark) paint for easy visual recognition.
■ Visual safety check
S Example of use Always lift a load at 2 or more points for safety.
Vertical &
lateral T
lifting clamps

check marks are Tightening check marks
Vertical phosphorescent get aligned
lifting clamps the grip of the circular
circular cam check marks aligned
cam gets stronger
screw
Lateral
lifting clamps
load load load
Before tightening After tightening When lifting
Horizontal Rated Clamp Size （mm） N.W.
lateral Item No. capacity （ton） range （mm） （kg）
lifting clamps, L L1 H H1 H2 D D1 T T1 S
lifting hooks
SDC0.5S 0.5 0〜25 158 89 121 71.5 30 27 27 46 13 17 1.9
SDC1S 1 0〜40 208 121 161 94 45 32 32 54 14 21 3.6
Steel beam SDC2S 2 0〜40 227 121 177 105 45 36 32 60 18 21 4.8
lifting clamps
SDC3.2S 3.2 0〜40 252 136 196 118.5 50 45 35 64 20 21 7
SDC6.3S 6.3 0〜50 291 152 225 132 55 50 41 90 43 21 16
Note : After having checked that the check marks are aligned, operate tightening over 25N・m (approx. 250kgf・cm).
Screw
cam clamps
L SDC-N ・ SDC-WN

Beam ■ SCREW CAM CLAMP (Double Eye Type) PAT.
clamps, D1
safety belt
clamps
＊ The features (except the twist cam with check marks)
H1 T1 and the examples of use are the same as SDC-S.
Super foot H
locks,
lifting hooks
H2
D
Super lock
hooks
21
clamp range
SDC1N L1 T
Drum lift Size（mm）
clamps Item No. Rated Clamp N.W.
capacity （ton） range （mm） L L1 H H1 H2 D D1 T T1 （kg）
SDC0.5N 0.5 0〜25 145.5 89 119 68.5 30 27 27 46 15 2.0
SDC1N 1 0〜40 199 121 157 90 45 32 32 50 16 3.4
Lifting hooks
for forklift, SDC1.5WN 1.5 10〜50 214 121 164 96 45 36 32 50 18 6.0
rail clamps
SDC2N 2 0〜40 215 121 168.5 96 45 36 32 55 19 4.5
SDC3N 3 0〜40 236.5 136 180.5 103 50 45 35 60 20 5.9
Reinforcing SDC3WN 3 35〜75 269.5 136 190.5 113 50 45 35 60 20 7.8
rod vertical
lifting clamps SDC5N 5 0〜50 270 152 215 123 55 50 37 80 43 13.3
Note : For the torque value of the screw tightening, operate tightening over 25N・m (approx. 250kgf・cm).
★The product parts list and operation manual can be downloaded from our website.
128 ●For all the appendix, please refer to P.284〜286
