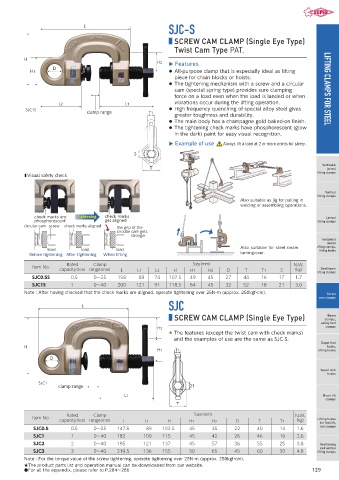

SJC-S
L

■ SCREW CAM CLAMP (Single Eye Type)
Twist Cam Type PAT.

H
H2 Features
D
H1 ● All-purpose clamp that is especially ideal as lifting
piece for chain blocks or hoists.
● The tightening mechanism with a screw and a circular
cam (special spring type) provides sure clamping LIFTING CLAMPS FOR STEEL
force on a load even when the load is landed or when
L2 L1 vibrations occur during the lifting operation.
SJC1S ● High frequency quenching of special alloy steel gives
clamp range T1
greater toughness and durability.
● The main body has a champagne gold baked-on finish.
● The tightening check marks have phosphorescent (glow
in the dark) paint for easy visual recognition.
Example of use Always lift a load at 2 or more points for safety.
S

Vertical &
T lateral
lifting clamps
■ Visual safety check

Vertical
lifting clamps
Also suitable as jig for pulling in
welding or assembling operations.
check marks are Tightening check marks Lateral
phosphorescent get aligned lifting clamps
circular cam screw check marks aligned
the grip of the
circular cam gets
stronger
Horizontal
lateral
Also suitable for steel beam lifting clamps,
load load load lifting hooks
turning-over.
Before tightening After tightening When lifting
Rated Clamp Size （mm） N.W.
Item No. Steel beam
capacity （ton） range （mm） L L1 L2 H H1 H2 D T T1 S （kg）
lifting clamps
SJC0.5S 0.5 0〜25 158 89 74 107.5 49 45 27 44 16 17 1.7
SJC1S 1 0〜40 200 121 91 118.5 64 45 32 52 18 21 3.0
Note : After having checked that the check marks are aligned, operate tightening over 25N・m (approx. 250kgf・cm). cam clamps
Screw
SJC
L
■ SCREW CAM CLAMP (Single Eye Type) clamps,
Beam
safety belt
clamps
H2
＊ The features (except the twist cam with check marks)
and the examples of use are the same as SJC-S.
Super foot
H locks,
H1 T1 lifting hooks
D
Super lock
hooks
SJC1
clamp range 21
L1 Drum lift
clamps
T

Rated Clamp Size （mm） N.W.
Item No. Lifting hooks
capacity （ton） range （mm） L L1 H H1 H2 D T T1 （kg） for forklift,
rail clamps
SJC0.5 0.5 0〜25 147.5 89 102.5 45 35 22 40 14 1.6
SJC1 1 0〜40 182 109 115 45 42 26 46 16 2.6
SJC2 2 0〜40 195 121 137 45 57 36 55 25 3.8 Reinforcing
rod vertical
SJC3 3 0〜40 219.5 136 155 50 65 45 60 30 4.8 lifting clamps
Note : For the torque value of the screw tightening, operate tightening over 25N・m (approx. 250kgf・cm).
★The product parts list and operation manual can be downloaded from our website.
●For all the appendix, please refer to P.284〜286 129
