AIR COMPRESSORS SHOP

BRA7380VEM BRA8380V EQUIPMENT

BRARS8380H BRA10312H

BRA15312H BRA20312H

®

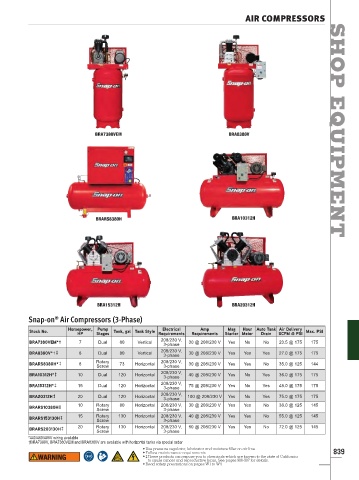

Snap-on Air Compressors (3-Phase)
Horsepower, Pump Electrical Amp Mag Hour Auto Tank Air Delivery
Stock No. Tank, gal Tank Style Max. PSI
HP Stages Requirements Requirements Starter Meter Drain SCFM @ PSI
BRA7380VEM*† 7 Dual 80 Vertical 208/230 V, 30 @ 208/230 V Yes No No 23.5 @ 175 175
3-phase
BRA8380V*† ‡ 8 Dual 80 Vertical 208/230 V, 30 @ 208/230 V Yes Yes Yes 27.0 @ 175 175
3-phase
BRARS8380H* ‡ 8 Rotary 73 Horizontal 208/230 V, 30 @ 208/230 V Yes Yes No 35.0 @ 125 144
3-phase
Screw
BRA10312H* ‡ 10 Dual 120 Horizontal 208/230 V, 40 @ 208/230 V Yes No Yes 36.0 @ 175 175
3-phase
BRA15312H* ‡ 15 Dual 120 Horizontal 208/230 V, 75 @ 208/230 V Yes No Yes 48.0 @ 175 175
3-phase
BRA20312H ‡ 20 Dual 120 Horizontal 208/230 V, 100 @ 208/230 V Yes No Yes 75.0 @ 175 175
3-phase
BRARS10380H ‡ 10 Rotary 80 Horizontal 208/230 V, 30 @ 208/230 V Yes Yes No 38.0 @ 125 145
3-phase
Screw
BRARS153130H ‡ 15 Rotary 130 Horizontal 208/230 V, 40 @ 208/230 V Yes Yes No 55.0 @ 125 145
Screw 3-phase
BRARS203130H ‡ 20 Rotary 130 Horizontal 208/230 V, 60 @ 208/230 V Yes Yes No 72.0 @ 125 145
Screw 3-phase
*440/460/480V wiring available
†BRA7380V, BRA7380VEM and BRA8380V are available with horizontal tanks via special order
• Use pressure regulator, lubricator and moisture filler on air line
• Follow maintenance requirements 839
• ‡ These products can expose you to chemicals which are known to the state of California
to cause cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
