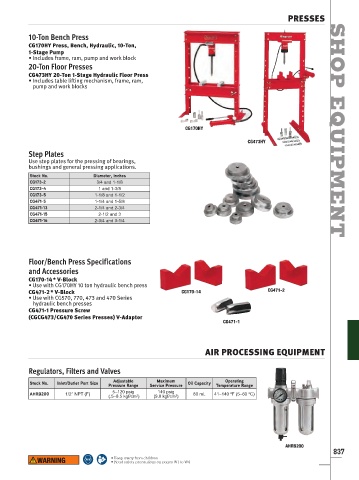

PRESSES

10-Ton Bench Press
CG170HY Press, Bench, Hydraulic, 10-Ton,
1-Stage Pump
• Includes frame, ram, pump and work block SHOP
20-Ton Floor Presses
CG473HY 20-Ton 1-Stage Hydraulic Floor Press
• Includes table lifting mechanism, frame, ram,
pump and work blocks

CG170HY

CG473HY
Step Plates
Use step plates for the pressing of bearings,
bushings and general pressing applications. EQUIPMENT
Stock No. Diameter, inches
CG173-2 3/4 and 1-1/8
CG173-4 1 and 1-3/8
CG173-5 1-1/8 and 1-1/2
CG471-5 1-1/4 and 1-5/8
CG471-13 2-1/4 and 2-3/4
CG471-15 2-1/2 and 3
CG471-16 2-3/4 and 3-1/4

Floor/Bench Press Specifications
and Accessories
CG170-14 * V-Block
• Use with CG170HY 10 ton hydraulic bench press
CG471-2 * V-Block CG170-14 CG471-2
• Use with CG570, 770, 473 and 470 Series
hydraulic bench presses
CG471-1 Pressure Screw
(CGCG473/CG470 Series Presses) V-Adaptor
CG471-1

AIR PROCESSING EQUIPMENT

Regulators, Filters and Valves
Adjustable Maximum Operating
Stock No. Inlet/Outlet Port Size Oil Capacity
Pressure Range Service Pressure Temperature Range
5–120 psig 140 psig
AHRB200 1/2ʺ NPT (F) (.5–8.5 kgf/cm²) (9.0 kgf/cm²) 80 mL 41–140 ºF (5–60 ºC)

AHRB200
837
• Keep away from children
• Read safety precautions on pages W1 to W4
