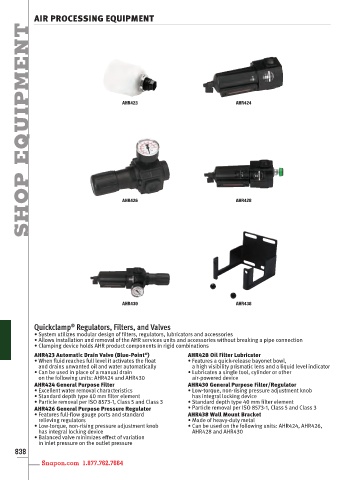

AIR PROCESSING EQUIPMENT
EQUIPMENT

AHR423 AHR424

SHOP AHR426 AHR428

AHR430 AHR438

Quickclamp Regulators, Filters, and Valves
®
• System utilizes modular design of filters, regulators, lubricators and accessories
• Allows installation and removal of the AHR services units and accessories without breaking a pipe connection
• Clamping device holds AHR product components in rigid combinations
®
AHR423 Automatic Drain Valve (Blue-Point ) AHR428 Oil Filter Lubricator
• When fluid reaches full level it activates the float • Features a quick-release bayonet bowl,
and drains unwanted oil and water automatically a high visibility prismatic lens and a liquid level indicator
• Can be used in place of a manual drain • Lubricates a single tool, cylinder or other
on the following units: AHR424 and AHR430 air-powered device
AHR424 General Purpose Filter AHR430 General Purpose Filter/Regulator
• Excellent water removal characteristics • Low-torque, non-rising pressure adjustment knob
• Standard depth type 40 mm filter element has integral locking device
• Particle removal per ISO 8573-1, Class 5 and Class 3 • Standard depth type 40 mm filter element
AHR426 General Purpose Pressure Regulator • Particle removal per ISO 8573-1, Class 5 and Class 3
• Features full-flow gauge ports and standard AHR438 Wall Mount Bracket
relieving regulators • Made of heavy-duty metal
• Low-torque, non-rising pressure adjustment knob • Can be used on the following units: AHR424, AHR426,
has integral locking device AHR428 and AHR430
• Balanced valve minimizes effect of variation
in inlet pressure on the outlet pressure
