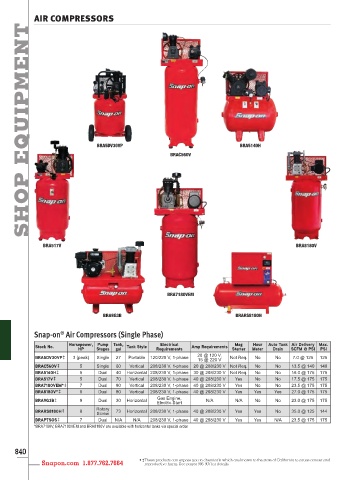

Page 842 - 实耐宝完整US版1500

AIR COMPRESSORS
EQUIPMENT

BRA5DV30VP BRA5140H
BRAC560V

SHOP

BRA517V BRA8180V

BRA7180VEM

BRA9G3B BRARS8180H

®
Snap-on Air Compressors (Single Phase)
Horsepower, Pump Tank, Electrical Mag Hour Auto Tank Air Delivery Max.
Stock No. Tank Style Amp Requirements
HP Stages gal Requirements Starter Meter Drain SCFM @ PSI PSI
BRA5DV30VP ‡ 3 (peak) Single 27 Portable 120/220 V, 1-phase 20 @ 120 V, Not Req. No No 7.0 @ 125 125
15 @ 220 V
BRAC560V ‡ 5 Single 60 Vertical 208/230 V, 1-phase 20 @ 208/230 V Not Req. No No 13.5 @ 140 140
BRA5140H ‡ 5 Dual 40 Horizontal 208/230 V, 1-phase 30 @ 208/230 V Not Req. No No 16.0 @ 175 175
BRA517V ‡ 5 Dual 70 Vertical 208/230 V, 1-phase 40 @ 208/230 V Yes No No 17.5 @ 175 175
BRA7180VEM* ‡ 7 Dual 80 Vertical 208/230 V, 1-phase 40 @ 208/230 V Yes No No 23.5 @ 175 175
BRA8180V* ‡ 8 Dual 80 Vertical 208/230 V, 1-phase 40 @ 208/230 V Yes Yes Yes 27.0 @ 175 175
BRA9G3B ‡ 9 Dual 30 Horizontal Gas Engine, N/A N/A No No 23.0 @ 175 175
Electric Start
BRARS8180H ‡ 8 Rotary 73 Horizontal 208/230 V, 1-phase 40 @ 208/230 V Yes Yes No 35.0 @ 125 144
Screw
BRAP7SOS ‡ 7 Dual N/A N/A 208/230 V, 1-phase 40 @ 208/230 V Yes Yes N/A 23.5 @ 175 175
*BRA7180V, BRA7180VEM and BRA8180V are available with horizontal tanks via special order

840
• ‡ These products can expose you to chemicals which are known to the state of California to cause cancer and
reproductive harm. See pages 906-907 for details.
