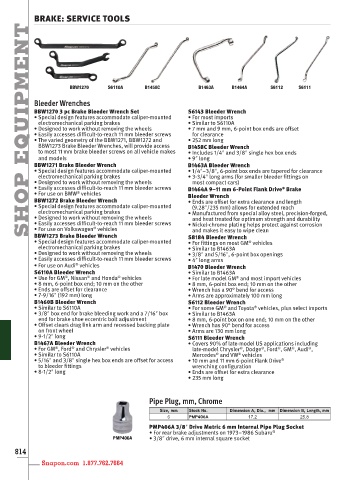

BRAKE: SERVICE TOOLS
EQUIPMENT

BBW1270 S6110A B1458C B1463A B1464A S6112 S6111

Bleeder Wrenches
BBW1270 3 pc Brake Bleeder Wrench Set S6143 Bleeder Wrench
• Special design features accommodate caliper-mounted • For most imports
electromechanical parking brakes • Similar to S6110A
• Designed to work without removing the wheels • 7 mm and 9 mm, 6-point box ends are offset
• Easily accesses difficult-to-reach 11 mm bleeder screws for clearance
• The varied geometry of the BBW1271, BBW1272 and • 252 mm long
BBW1273 Brake Bleeder Wrenches, will provide access B1458C Bleeder Wrench
to most 11 mm brake bleeder screws on all vehicle makes • Includes 1/4ʺ and 3/8ʺ single hex box ends
and models • 9ʺ long
BBW1271 Brake Bleeder Wrench B1463A Bleeder Wrench
• Special design features accommodate caliper-mounted • 1/4ʺ–3/8ʺ, 6-point box ends are tapered for clearance
SHOP • Easily accesses difficult-to-reach 11 mm bleeder screws B1464A 9–11 mm 6-Point Flank Drive Brake
electromechanical parking brakes
• 3-3/4ʺ long arms (for smaller bleeder fittings on
• Designed to work without removing the wheels
most compact cars)
®
• For use on BMW vehicles
®
Bleeder Wrench
BBW1272 Brake Bleeder Wrench
• Ends are offset for extra clearance and length
• Special design features accommodate caliper-mounted
(9.28ʺ/235 mm) allows for extended reach
electromechanical parking brakes
• Manufactured from special alloy steel, precision-forged,
• Designed to work without removing the wheels
and heat treated for optimum strength and durability
• Easily accesses difficult-to-reach 11 mm bleeder screws
• For use on Volkswagen vehicles
®
and makes it easy to wipe clean
BBW1273 Brake Bleeder Wrench
S8184 Bleeder Wrench
• Special design features accommodate caliper-mounted • Nickel-chrome plating helps protect against corrosion
• For fittings on most GM vehicles
®
electromechanical parking brakes • Similar to B1463A
• Designed to work without removing the wheels • 3/8ʺ and 5/16ʺ, 6-point box openings
• Easily accesses difficult-to-reach 11 mm bleeder screws • 4ʺ long arms
®
• For use on Audi vehicles B1470 Bleeder Wrench
S6110A Bleeder Wrench • Similar to B1463A
®
®
®
• Use for GM , Nissan and Honda vehicles • For late model GM and most import vehicles
®
• 8 mm, 6-point box end; 10 mm on the other • 8 mm, 6-point box end; 10 mm on the other
• Ends are offset for clearance • Wrench has a 90° bend for access
• 7-9/16ʺ (192 mm) long • Arms are approximately 100 mm long
B1460B Bleeder Wrench S6112 Bleeder Wrench
• Similar to S6110A • For some GM and Toyota vehicles, plus select imports
®
®
• 3/8ʺ box end for brake bleeding work and a 7/16ʺ box • Similar to B1463A
end for brake shoe eccentric bolt adjustment • 8 mm, 6-point box on one end; 10 mm on the other
• Offset clears drag link arm and recessed backing plate • Wrench has 90° bend for access
on front wheel • Arms are 130 mm long
• 9-1/2ʺ long S6111 Bleeder Wrench
B1467A Bleeder Wrench • Covers 90% of late-model US applications including
®
®
®
®
®
®
• For GM , Ford and Chrysler vehicles late-model Chrysler , Dodge , Ford , GM , Audi ,
®
®
®
®
• Similar to S6110A Mercedes and VW vehicles
®
• 5/16ʺ and 3/8ʺ single hex box ends are offset for access • 10 mm and 11 mm 6-point Flank Drive
to bleeder fittings wrenching configuration
• 8-1/2ʺ long • Ends are offset for extra clearance
• 235 mm long
Pipe Plug, mm, Chrome
Size, mm Stock No. Dimension A, Dia., mm Dimension B, Length, mm
6 PMP406A 17.2 25.8
PMP406A 3/8ʺ Drive Metric 6 mm Internal Pipe Plug Socket
• For rear brake adjustments on 1973–1986 Subaru ®
PMP406A • 3/8ʺ drive, 6 mm internal square socket
