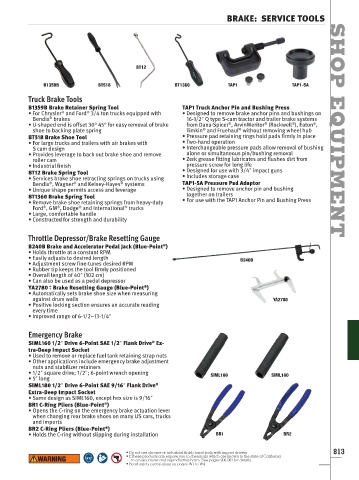

BRAKE: SERVICE TOOLS

BT12 SHOP

B1359B BT518 BT1360 TAP1 TAP1-5A
Truck Brake Tools
B1359B Brake Retainer Spring Tool TAP1 Truck Anchor Pin and Bushing Press
®
• For Chrysler and Ford 3/4 ton trucks equipped with • Designed to remove brake anchor pins and bushings on
®
®
Bendix brakes 16-1/2ʺ Q type S-cam tractor and trailer brake systems
®
®
®
• U-shaped end is offset 30° 45° for easy removal of brake from Dana-Spicer , ArvinMeritor (Rockwell ), Eaton ,
®
®
shoe to backing plate spring Timkin and Fruehauf without removing wheel hub
®
BT518 Brake Shoe Tool • Pressure pad retaining rings hold pads firmly in place
• For large trucks and trailers with air brakes with • Two-hand operation
S cam design • Interchangeable pressure pads allow removal of bushing
• Provides leverage to back out brake shoe and remove alone or simultaneous pin/bushing removal
roller cam • Zerk grease fitting lubricates and flushes dirt from
• Industrial finish pressure screw for long life EQUIPMENT
BT12 Brake Spring Tool • Designed for use with 3/4ʺ impact guns
• Services brake shoe retracting springs on trucks using • Includes storage case
®
Bendix , Wagner and Kelsey-Hayes systems TAP1-5A Pressure Pad Adaptor
®
®
• Unique shape permits access and leverage • Designed to remove anchor pin and bushing
BT1360 Brake Spring Tool together on trailers
• Remove brake shoe retaining springs from heavy-duty • For use with the TAP1 Anchor Pin and Bushing Press
®
®
®
Ford , GM , Dodge and International trucks
®
• Large, comfortable handle
• Constructed for strength and durability
Throttle Depressor/Brake Resetting Gauge
B240B Brake and Accelerator Pedal Jack (Blue-Point )
®
• Holds throttle at a constant RPM
• Easily adjusts to desired length B240B
• Adjustment screw fine-tunes desired RPM
• Rubber tip keeps the tool firmly positioned
• Overall length of 40ʺ (102 cm)
• Can also be used as a pedal depressor
®
YA2780 ‡ Brake Resetting Gauge (Blue-Point )
• Automatically sets brake shoe size when measuring
against drum walls YA2780
• Positive locking section ensures an accurate reading
every time
• Improved range of 6-1/2–13-1/4ʺ
Emergency Brake
SIML160 1/2ʺ Drive 6-Point SAE 1/2ʺ Flank Drive Ex-
®
tra-Deep Impact Socket
• Used to remove or replace fuel tank retaining strap nuts
• Other applications include emergency brake adjustment
nuts and stabilizer retainers
• 1/2ʺ square drive; 1/2ʺ; 6-point wrench opening SIML160 SIML180
• 5ʺ long
®
SIML180 1/2ʺ Drive 6-Point SAE 9/16ʺ Flank Drive
Extra-Deep Impact Socket
• Same design as SIML160, except hex size is 9/16ʺ
BR1 C-Ring Pliers (Blue-Point )
®
• Opens the C-ring on the emergency brake actuation lever
when changing rear brake shoes on many US cars, trucks
and imports
®
BR2 C-Ring Pliers (Blue-Point )
• Holds the C-ring without slipping during installation BR1 BR2
• Do not use chrome or industrial finish hand tools with impact drivers 813
• ‡ These products can expose you to chemicals which are known to the state of California
to cause cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
